Add to Cart
$174.99
$159.99

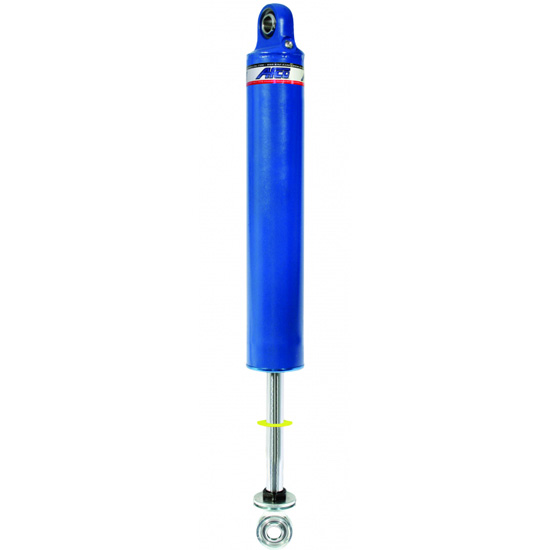

AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5
AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5

AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5

Modified, Sport Mod, Stock Car, Mono Tube Shock Type, Steel Shock Body Material, Powder Coated

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Limited Qty
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5
AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5
AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5
X
AFCO 2495 24 Series Steel Body Gas Shock, 9 Inch Stroke, Comp/Reb: 5/5
Zoomed In Image
Part # 1062495
Save 8%
$159.99
$174.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Shock Type:
Mono Tube
Shock Body Material:
Steel
Shock Body Type:
Smooth
Shock Body Size:
Large Body
Shock Stroke Range:
9.00" to 9.99"
Compression Valving:
5
Rebound Valving:
5
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length Range:
22.00" to 22.99"
Extended Length:
22.85"
Compressed Length Range:
14.00" to 14.99"
Compressed Length:
14.95"
Schrader Valve:
No
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
5 compression - 5 rebound
Bushing Material:
Steel
MFG. Part #:
2495
Sold in Quantity:
Each
Notes:
IMCA legal
Inside Diameter:
46 mm
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Gas Charged:
Yes

Info

Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.

The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Coil-over and non coil-over compatible.

The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
