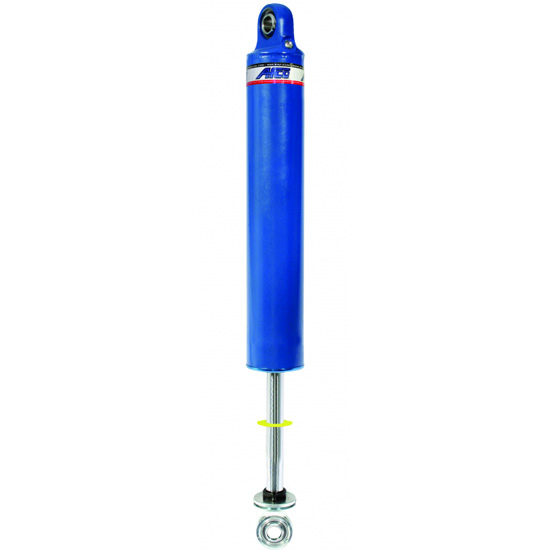

AFCO 2494RT 24 Series Steel Gas Shock-9 Inch, Comp 4/Reb 4-Rough Track
$213.99
/each
Factory Shipped
$249.99
Save $36.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
-14%
-14%
|
#1062494RT
$213.99
/each
Factory Shipped
$249.99
Save $36.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized AFCO shock rebuild center, and are available in straight or split valve codes. Coil-over and non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
Application

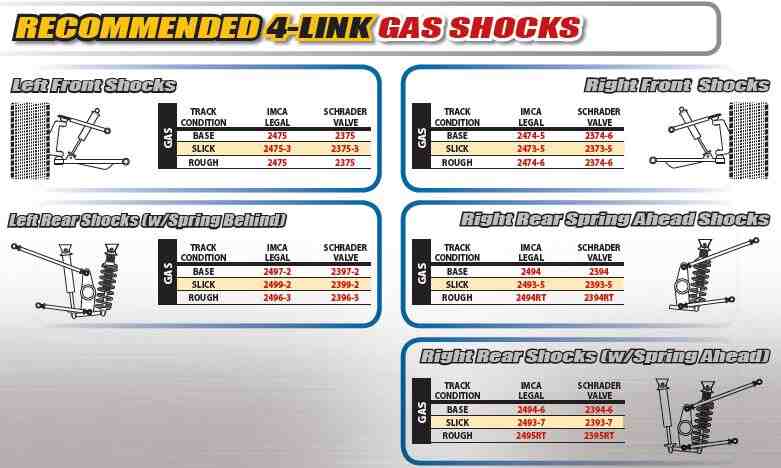

Charts
Guides & Documents
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 2494RT |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Rear Right |
| Compression Valving | 4RT |
| Rebound Valving | 4RT |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 22.00" to 22.99" |
| Extended Length | 22.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Powder Coated |
| Compressed Length | 14.95" |
| Gas Charged | Yes |
| GENERAL | |
| Schrader Valve | No |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 4RT compression - 4RT rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | 0.5" |
| Hardware Included | No |
| Notes | IMCA legal |
| Sold in Quantity | Each |
