AFCO 2494D 24 Series Steel Gas Shock, 9 Inch, Right Rear, Comp 4/Reb 4

-14%

AFCO 2494D 24 Series Steel Gas Shock, 9 Inch, Right Rear, Comp 4/Reb 4
AFCO

|

#1062494D

AFCO 2494D 24 Series Steel Gas Shock, 9 Inch, Right Rear, Comp 4/Reb 4

$213.99

/each

Factory Shipped

$249.99

Save $36.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Sport Mod, Stock Car, Mono Tube Shock Type

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 2494D Details

    AFCO's sophisticated 24 Series steel body gas shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These mono-tube shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

    • Compressed Length: 14.95"
    • Extended Length: 23.85"
    • IMCA Racing approved
    • Mono-tube steel body
    • Gas pressure floating piston design
    • Deflective disc technology
    • Performance at its best on fast or rough tracks
    • Grooved for coil-over applications
    • Street Stock/Super Stock applications (left rear)
    • Rebuildable and serviceable through an authorized AFCO shock rebuild center

    Application

    • Dirt Modifieds
    • Recommended Swing Arm Gas Shocks-IMCA Legal
      • Left Rear
        • Base Track Condition
    • Street Stocks and Super Stocks - Dirt
    • Recommended Dirt Shocks - Gas
      • Right Rear
        • Camaro, Metric Frame

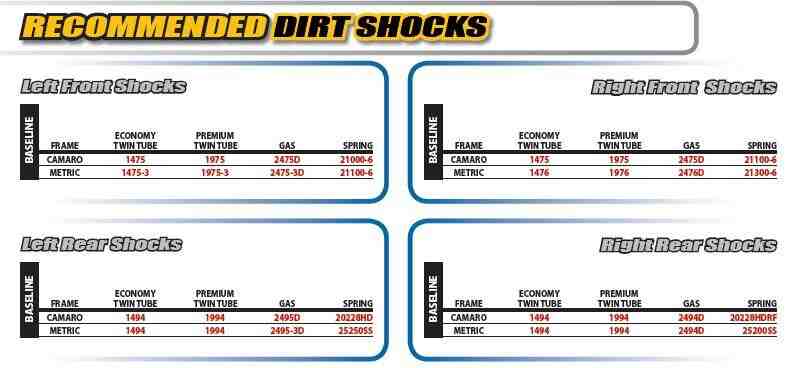

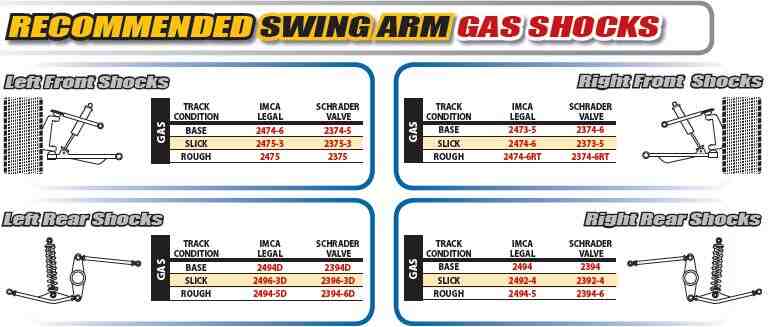

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 2494D Specifications

    KEY SPECS
    MFG. Part #2494D
    BrandAFCO
    Shock TypeMono Tube
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    PositionRear Right
    Compression Valving4
    Rebound Valving4
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range23.00" to 23.99"
    Extended Length23.85"
    Compressed Length Range14.00" to 14.99"
    FinishPowder Coated
    Compressed Length14.95"
    Gas ChargedYes
    GENERAL
    Schrader ValveNo
    Shock Stroke9.00
    Coil-Over CompatibleYes
    Valve Positions4 compression - 4 rebound
    Bushing MaterialSteel
    Inside Diameter46 mm
    Shock Eyelet Width.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
    NotesIMCA legal
    Sold in QuantityEach
