#10624946D

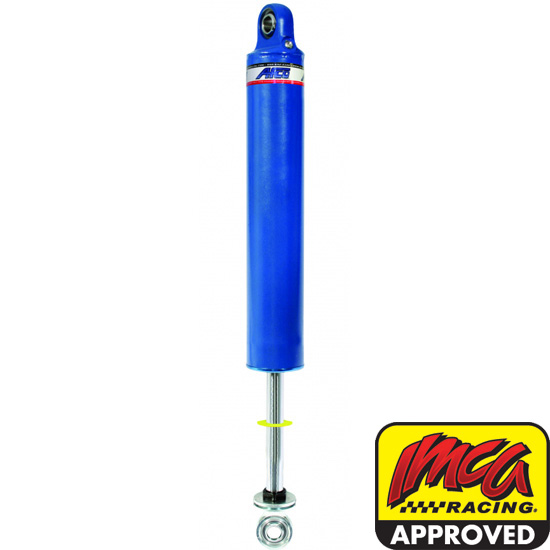

AFCO 2494-6D 24 Series Steel Gas Shock-9 Inch, Left Rear, Comp 4/Reb 6
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before May 31st.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Mono Tube Shock Type, Gas Charged
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Position | Rear Left |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2494-6D Details
AFCO 2494-6D Details
AFCO's sophisticated 24 Series steel body gas shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These mono-tube shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.
- IMCA Racing approved
- Mono-tube steel body
- Gas pressure floating piston design
- Deflective disc technology
- Performance at its best on fast or rough tracks
- Grooved for coil-over applications
- Street Stock/Super Stock applications (left rear)
- Rebuildable and serviceable through an authorized AFCO shock rebuild center
IMCA Approved.
Specs
- Compressed Length: 14.95"
- Extended Length: 23.85"
AFCO 2494-6D Specifications
AFCO 2494-6D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2494-6D |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Position | Rear Left |
| Compression Valving | 4 |
| Rebound Valving | 6 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.95" |
| Finish | Powder Coated |
| Coil-Over Compatible | Yes |
| Gas Charged | Yes |
| GENERAL | |
| Speedway Motors Catalog Part # | 106-24946D |
| Schrader Valve | No |
| Body Diameter | 2.00" |
| Valve Positions | 4 compression - 6 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | IMCA legal |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
