#10624753

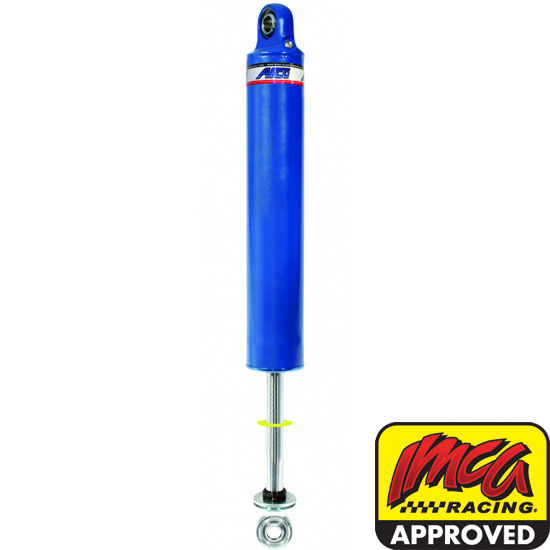

AFCO 2475-3 24 Series Steel Body Gas Shock-7 Inch Stroke, Comp 5/Reb 3
$209.99
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Mono Tube Shock Type, Gas Charged
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2475-3 Details
AFCO 2475-3 Details
Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
Application
- Dirt Modifieds
- Recommended Swing Arm and 4-Link Gas Shocks-IMCA Legal
- Left Front
- Slick Track Condition
- Left Front
Charts
AFCO 2475-3 Specifications
AFCO 2475-3 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2475-3 |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5 |
| Rebound Valving | 3 |
| Extended Length Range | 18.00" to 18.99" |
| Extended Length | 18.85" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.95" |
| Finish | Powder Coated |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| Valve Positions | 5 compression - 3 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | IMCA legal |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
