#1062474D

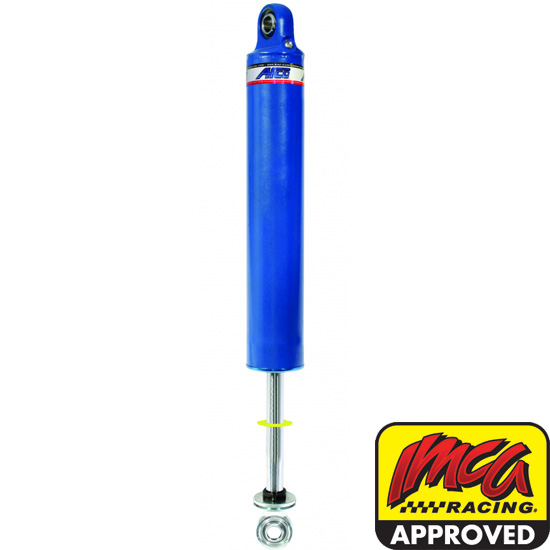

AFCO 2474D 24 Series Steel Gas Shock, Left Front, 7 Inch, Comp 4/Reb 4
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 3rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Mono Tube Shock Type, Gas Charged
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2474D Details
AFCO 2474D Details
Speedway Motors is proud to be the first to announce the release of AFCO's newly designed IMCA approved steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
AFCO 2474D Specifications
AFCO 2474D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2474D |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Position | Front Left |
| Compression Valving | 4 |
| Rebound Valving | 4 |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.85" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.95" |
| Finish | Powder Coated |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| Valve Positions | 4 compression - 4 rebound |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Notes | IMCA legal |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
