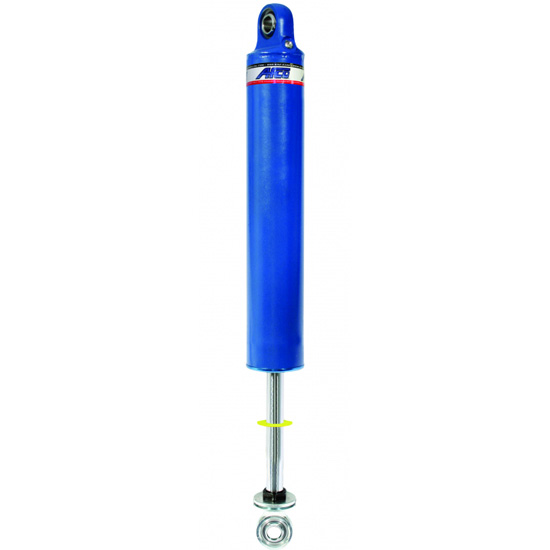

AFCO 24 Series Custom Racing Shock
AFCO 24 Series Custom Racing Shock
AFCO

|

#106240

AFCO 24 Series Custom Racing Shock

Length:

Select a length

Left Side N=0 Y=1:

Select a left side n=0 y=1

Compression:

Select a compression

Rebound:

Select a rebound

$244.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Stock Car, Mono Tube Shock Type, Gas Charged

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Details

    Exclusively at Speedway Motors you can now order your custom AFCO Circle/Oval Dirt Track Racing shocks online!

    Speedway Motors is proud to be the first to announce the release of AFCO's newly designed steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.

    The new Steel Body 24 Series Gas Shock uses a Floating Piston Design. They are rebuildable and serviceable through an authorized Afco shock rebuild center, and are available in straight or split valve codes. Coil-over and non coil-over compatible.

    The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!

    Choose:

    • Length -  7 or 9"
    • Left side shock - 0=N, 1=Y
    • Compression Valving - 0-13
    • Rebound Valving - 0-13

    Note: This shock is custom valved and assembled by our expert staff and will take up to 72 hours to be built. Due to its custom nature, it cannot be returned for a refund.

    IMCA Approved.

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    Specifications

    KEY SPECS
    MFG. Part #Select Compression, Left Side N=0 Y=1, Length and Rebound to see
    BrandAFCO
    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke RangeSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    PositionLeft
    Compression ValvingSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Rebound ValvingSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Mount PositionLeft
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length RangeSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Extended LengthSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Compressed Length RangeSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    FinishPowder Coated
    Compressed LengthSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Gas ChargedYes
    GENERAL
    RebuildableYes
    Schrader ValveNo
    Shock StrokeSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Coil-Over CompatibleYes
    Valve PositionsSelect Compression, Left Side N=0 Y=1, Length and Rebound to see
    Bushing MaterialSteel
    Inside Diameter46 mm
    Shock Eyelet Width.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
    NotesMADE TO ORDER
    Sold in QuantityEach

    Questions & Answers

    4 Questions • 4 Answers

    Can these shocks be built with different pressure ranges such as low, standard, and high pressures?

    by Chad

    • 9 years ago

    1 answer

    View Answer

    What is the difference between a left side shock and a right side?

    by This Guy

    • 10 years ago

    1 answer

    View Answer

    Can I get this in like a cob style shock.

    by Mw

    • 10 years ago

    1 answer

    View Answer

    can you get these with low pressure.

    by dirt0

    • 12 years ago

    1 answer

    View Answer

    4 of 4 questions shown
