-10%
-10%
|
#10623982
$224.99
/each
In Stock
$249.99
Save $25.00
Order soon, only 1 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns

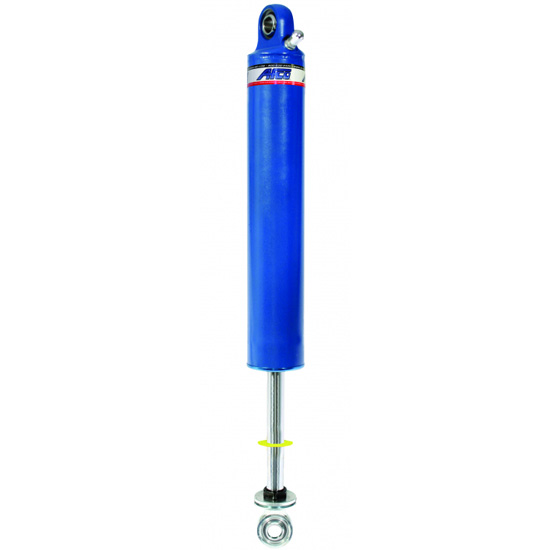

Return PolicySpeedway Motors is proud to be the first to announce the release of AFCO's newly designed steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body Gas Shocks use a Floating Piston Design. The 23 series comes equipped with a Schrader valve to allow you to quickly vary the shock's gas pressure according to track conditions. They are completely owner rebuildable and serviceable, and are available in straight or split valve codes. Coil-over and non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 2398-2 |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Front or Rear |
| Compression Valving | 8 |
| Rebound Valving | 2 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 22.00" to 22.99" |
| Extended Length | 22.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Powder Coated |
| Compressed Length | 14.95" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | Yes |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 8 compression - 2 rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | 0.5" |
| Hardware Included | No |
| Sold in Quantity | Each |
