#1062396

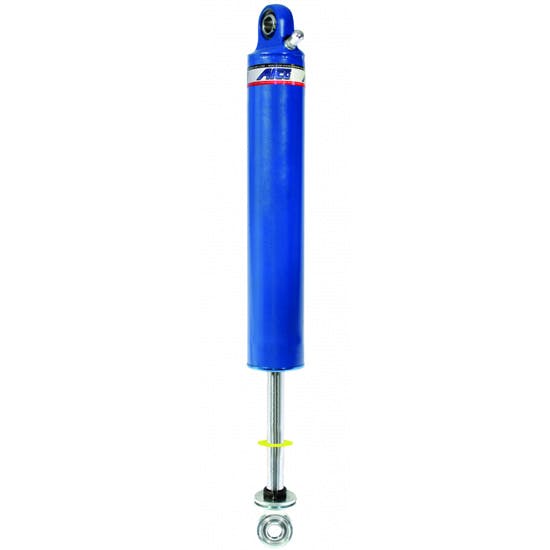

AFCO 2396 Steel Body Gas Shock W/ Schrader Valve-9 Inch, Comp 6/Reb 6
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before December 4th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Sport Mod, Stock Car, Mono Tube Shock Type
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2396 Details
AFCO 2396 Details
Speedway Motors is proud to be the first to announce the release of AFCO's newly designed steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body Gas Shocks use a Floating Piston Design. The 23 series comes equipped with a Schrader valve to allow you to quickly vary the shock's gas pressure according to track conditions. They are completely owner rebuildable and serviceable, and are available in straight or split valve codes. Coil-over and non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
AFCO 2396 Specifications
AFCO 2396 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2396 |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 6 |
| Rebound Valving | 6 |
| Extended Length Range | 22.00" to 22.99" |
| Extended Length | 22.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.95" |
| Finish | Powder Coated |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 9.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Schrader Valve | Yes |
| Coil-Over Compatible | Yes |
| Valve Positions | 6 compression - 6 rebound |
| Rebuildable | Yes |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
