AFCO 2394 Steel Body Gas Shock W/ Schrader Valve-9 Inch, Comp 4/Reb 4
AFCO 2394 Steel Body Gas Shock W/ Schrader Valve-9 Inch, Comp 4/Reb 4
AFCO

|

#1062394

AFCO 2394 Steel Body Gas Shock W/ Schrader Valve-9 Inch, Comp 4/Reb 4

$285.99

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Sport Mod, Stock Car, Mono Tube Shock Type

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 2394 Details

    Speedway Motors is proud to be the first to announce the release of AFCO's newly designed steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.

    The new Steel Body Gas Shocks use a Floating Piston Design. The 23 series comes equipped with a Schrader valve to allow you to quickly vary the shock's gas pressure according to track conditions. They are completely owner rebuildable and serviceable, and are available in straight or split valve codes. Coil-over and non coil-over compatible.

    The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!

    Application

    • Dirt Modifieds

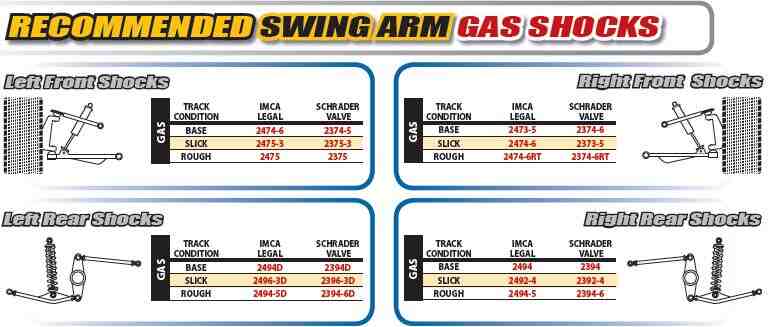

    • Recommended Swing Arm Gas Shocks-Schrader Valve
      • Right Rear
        • Base Track Condition

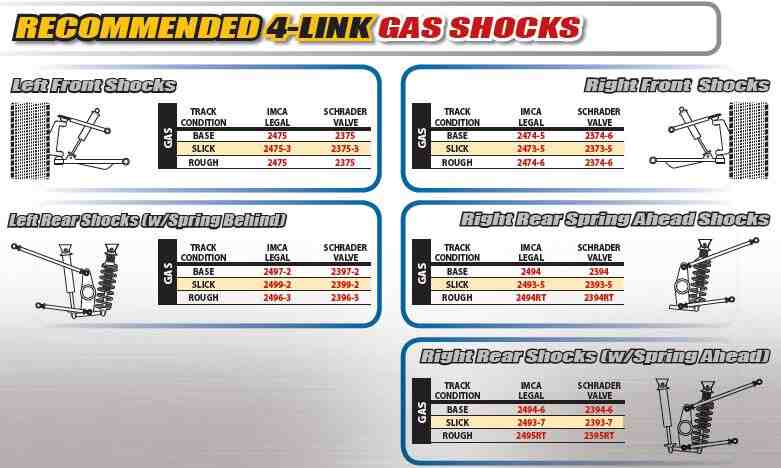

    • Recommended 4-Link Gas Shocks-Schrader Valve
      • Right Rear Spring Ahead
        • Base Track Condition

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 2394 Specifications

    KEY SPECS
    MFG. Part #2394
    BrandAFCO
    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialSteel
    Body Diameter2"
    Shock Body TypeSmooth
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving4
    Rebound Valving4
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range22.00" to 22.99"
    Extended Length22.85"
    Compressed Length Range14.00" to 14.99"
    FinishPowder Coated
    Compressed Length14.95"
    Gas ChargedYes
    GENERAL
    RebuildableYes
    Schrader ValveYes
    Shock Stroke9.00
    Coil-Over CompatibleYes
    Valve Positions4 compression - 4 rebound
    Bushing MaterialSteel
    Inside Diameter46 mm
    Shock Eyelet Width.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
    Sold in QuantityEach
