#1062393D
AFCO 2393D 23 Series Steel Gas Shock Schrader Valve 9 In Comp 3/Reb 3
$285.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Need To Know
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2393D Details
AFCO 2393D Details

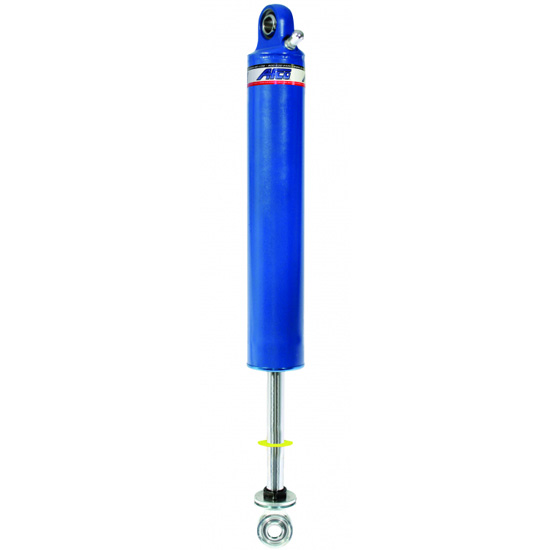

AFCO Steel Body Gas Shocks with Schrader Valve. Left Side. 9 Inch Stroke.
Warranty Information
Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.
AFCO 2393D Specifications
AFCO 2393D Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2393D |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Rear Left |
| Compression Valving | 3 |
| Rebound Valving | 3 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.85" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Powder Coated |
| Compressed Length | 14.95" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | Yes |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 3 compression - 3 rebound |
| Bushing Material | Steel |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | 0.5" |
| Hardware Included | No |
| Sold in Quantity | Each |
