#10623746

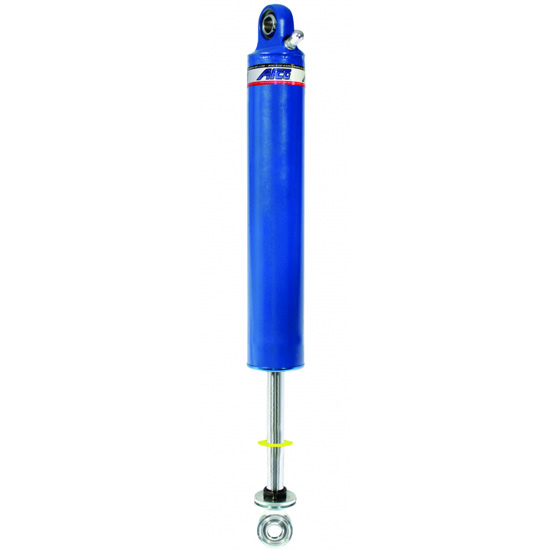

AFCO 2374-6 Steel Gas Shock W/ Schrader Valve, 7 Inch, Comp 4/Reb 6
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 11th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Mono Tube Shock Type, Gas Charged
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2374-6 Details
AFCO 2374-6 Details
Speedway Motors is proud to be the first to announce the release of AFCOs newly designed steel body gas shocks. These new shocks have all the sophistication of our deflective disc technology wrapped up in an economical & rule friendly, non-adjustable package. These are sure to be the answer for any racer under constraints to experience gas shocks.
The new Steel Body Gas Shocks use a Floating Piston Design. The 23 series comes equipped with a Schrader valve to allow you to quickly vary the shocks gas pressure according to track conditions. They are completely owner rebuildable and serviceable, and are available in straight or split valve codes. Non coil-over compatible.
The choice is clear, let the new AFCO Steel Mono-Tube Gas Shocks handle your car all the way to victory lane!
Item Details
Comp/Rebound: 4/6Application
- Dirt Modifieds
- Recommended Swing Arm Gas Shocks-Schrader Valve
- Right Front
- Base Track Condition
- Right Front
- Recommended 4-Link Gas Shocks-Schrader Valve
- Right Front
- Base, Rough Track Condition
- Right Front
Charts
AFCO 2374-6 Specifications
AFCO 2374-6 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2374-6 |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 4 |
| Rebound Valving | 6 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 18.00" to 18.99" |
| Extended Length | 18.85" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.95" |
| Finish | Powder Coated |
| Coil-Over Compatible | Yes |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | Yes |
| Body Diameter | 2.00" |
| Valve Positions | 4 compression - 6 rebound |
| Rebuildable | Yes |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Inside Diameter | 46 mm |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
