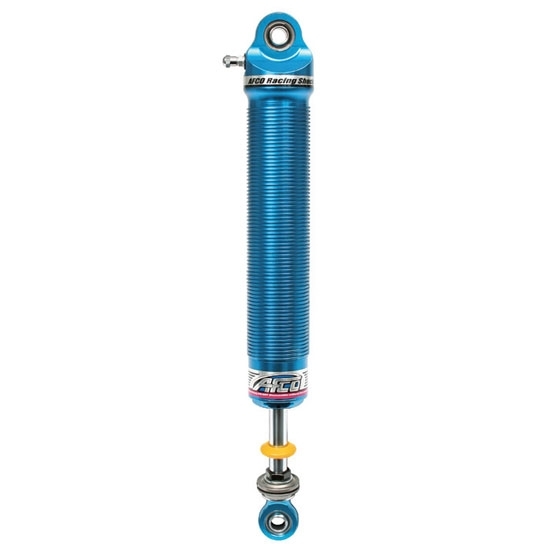

AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2 Valve
AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2 Valve
AFCO

|

#10621962D

AFCO 2196-2D 21 Series Large Body Threaded Shock-9 Inch, LH, 6-2 Valve

$273.99

/each

Factory Shipped

$274.99

Save $1.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Pavement Late Model, Sprint Car

    See more details

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 2196-2D Details

    AFCOs 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

    • Fixed valving in a gas pressure design
    • Threaded for coil-over applications
    • User serviceable/repairable
    • Late Model/Crate Late Model application (left side)

    Item Details

    Compressed Length: 15.53"Extended Length: 24.47"Comp./Rebound: 6/2

    Application

    • Dirt Late Model/Crate Late Model

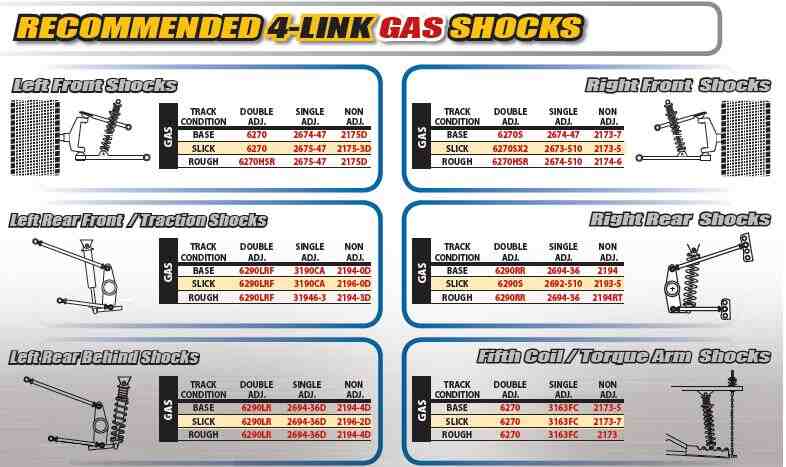

    • Recommended 4-Link Gas Shock
      • Left Rear Behind Shocks
        • Slick Track Condition

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 2196-2D Specifications

    KEY SPECS
    MFG. Part #2196-2D
    BrandAFCO
    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving6
    Rebound Valving2
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range24.00" to 24.99"
    Extended Length24.25"
    Compressed Length Range16.00" to 16.99"
    FinishAnodized
    Compressed Length16.25"
    GENERAL
    RebuildableYes
    Schrader ValveYes
    Shock Stroke9.00
    Coil-Over CompatibleYes
    Sold in QuantityEach
