#10621956

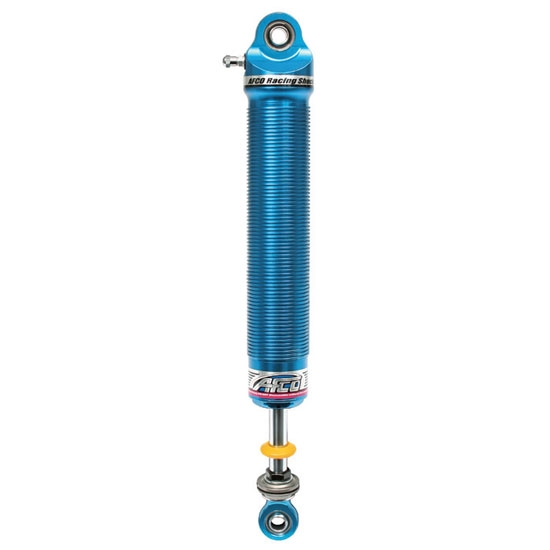

AFCO 2195-6 21 Series Large Body Threaded Gas Shock, 9 Inch, 5-6 Valve
$239.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before November 3rd.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Pavement Late Model, Sprint Car
See more details
Key Specs
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 2195-6 Details
AFCO 2195-6 Details
AFCOs 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.
- Fixed valving in a gas pressure design
- Threaded for coil-over applications
- User serviceable/repairable
- Late Model/Crate Late Model application
Item Details
Compressed Length: 16.21"Extended Length: 24.15"Comp./Rebound: 5/6Application
Sprint Car Wing - Dirt
- Recommended Gas Shocks - Big Body Non-Adjustable Threaded
- Right Rear
- Slick Track Condition
- Right Rear
Charts
Guides & Documents
AFCO 2195-6 Specifications
AFCO 2195-6 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2195-6 |
| Brand | AFCO |
| Shock Type | Mono Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 5 |
| Rebound Valving | 6 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 24.00" to 24.99" |
| Extended Length | 24.25" |
| Compressed Length Range | 16.00" to 16.99" |
| Compressed Length | 16.25" |
| Finish | Anodized |
| Coil-Over Compatible | Yes |
| Gas Charged | Yes |
| GENERAL | |
| Shock Stroke | 9.00 |
| Schrader Valve | Yes |
| Rebuildable | Yes |
| Sold in Quantity | Each |
