Product Summary

Dirt Late Model, Pavement Late Model, Sprint Car

    Key Specs

    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

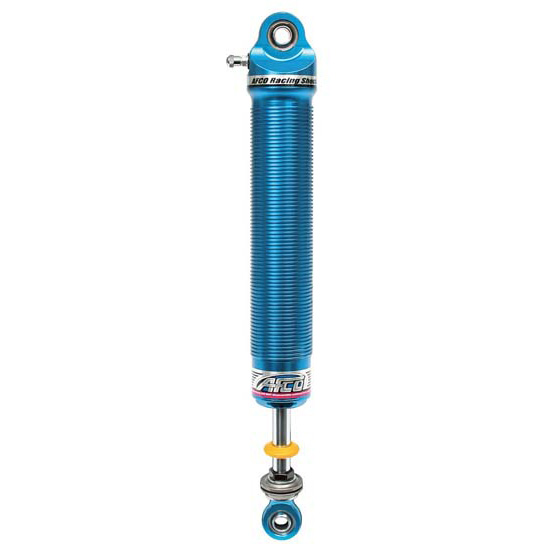

    AFCO aluminum, mono-tube design, 79 stroke, big body 2.17" outside diameter, coil-over style, non-adjustable valving, user serviceable. 3 valve on compression and 5 valve on rebound with rough track valving. Fine tuning by adjusting gas pressure by Schrader valve, for chassis stability and drive feel. Compressed length 16.21", extended 24.15"

    Specifications

    KEY SPECS
    MFG. Part #2193-5RT
    BrandAFCO
    Shock TypeMono Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    GENERAL
    Shock Stroke Range9.00" to 9.99"
    Shock Stroke9.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range24.00" to 24.99"
    Extended Length24.25"
    Compressed Length Range16.00" to 16.99"
    Compressed Length16.25"
    Schrader ValveYes
    FinishAnodized
    Coil-Over CompatibleYes
    RebuildableYes
    Sold in QuantityEach
