Add to Cart
$174.99

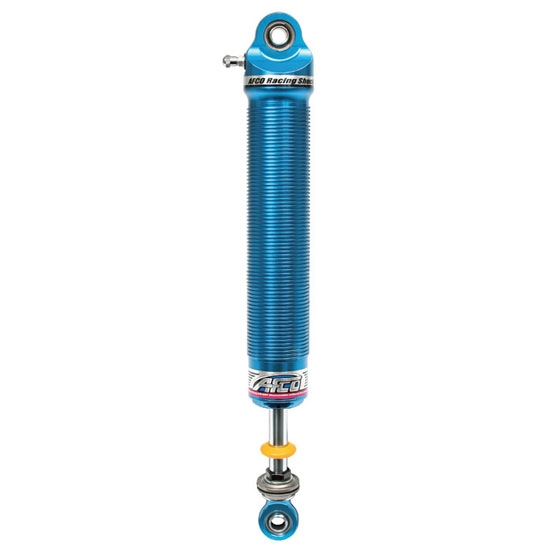

AFCO 2193-5 21 Series Large Body Threaded Gas Shock, 9 Inch, 3-5 Valve
AFCO 2193-5 21 Series Large Body Threaded Gas Shock, 9 Inch, 3-5 Valve

AFCO 2193-5 21 Series Large Body Threaded Gas Shock, 9 Inch, 3-5 Valve

Sprint Car, Mono Tube Shock Type, Non-Adjustable Shock Adjustability, Threaded Shock Body Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2193-5 21 Series Large Body Threaded Gas Shock, 9 Inch, 3-5 Valve
AFCO 2193-5 21 Series Large Body Threaded Gas Shock, 9 Inch, 3-5 Valve
Zoomed In Image
We estimate this item will ship on or before July 24th.
Part # 10621935
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for AFCO to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Shock Type:
Mono Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
9.00" to 9.99"
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
24.25"
Compressed Length:
16.25"
Extended Length Range:
24.00" to 24.99"
Compressed Length Range:
16.00" to 16.99"
Compression Valving:
3
Rebound Valving:
5
Schrader Valve:
Yes
Finish:
Anodized
Coil-Over Compatible:
Yes
Rebuildable:
Yes
MFG. Part #:
2193-5
Sold in Quantity:
Each
Gas Charged:
Yes

Info

AFCOs 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

  • Fixed valving in a gas pressure design
  • Threaded for coil-over applications
  • User serviceable/repairable
  • Late Model/Crate Late Model application

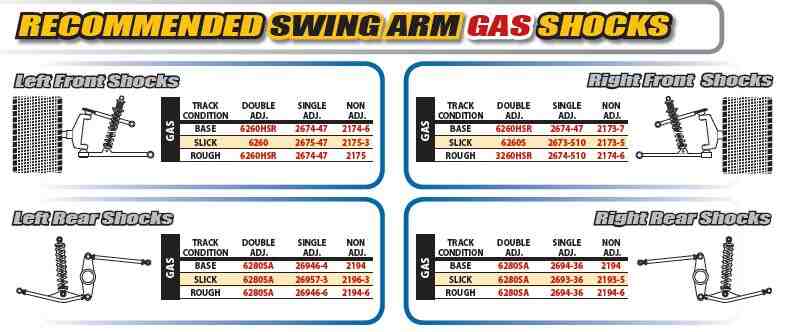

Late Model Swing Arm Gas Shock Chart (Link)

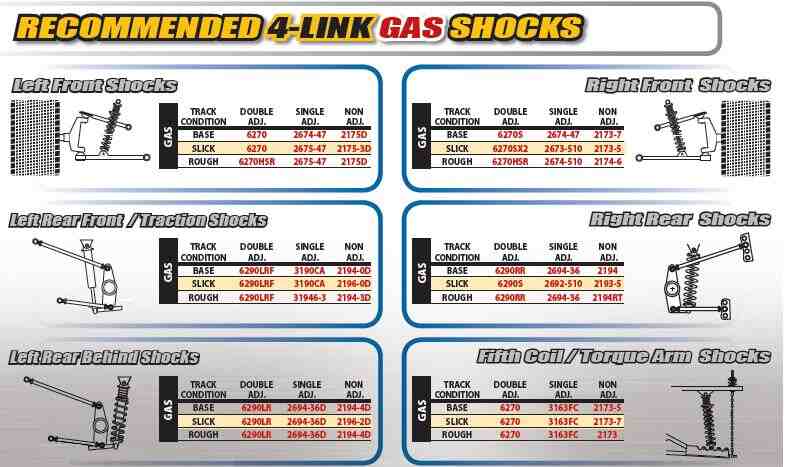

Late Model 4-Link Gas Shock Chart (Link)

Item Details

3-5 ValveCompressed Length: 16.21"Extended Length: 24.15"Comp./Rebound: 3/5

Application

  • Dirt Late Model/Crate Late Model
  • Recommended Swing Arm & 4-Link Gas Shock
    • Right Rear
      • Slick Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations
