AFCO 2174-6 21 Series Large Body Threaded Gas Shock, 7 Inch, 4-6 Valve
AFCO 2174-6 21 Series Large Body Threaded Gas Shock, 7 Inch, 4-6 Valve

AFCO 2174-6 21 Series Large Body Threaded Gas Shock, 7 Inch, 4-6 Valve

Sprint Car, Mono Tube Shock Type, Aluminum Shock Body Material, Large Body Shock Body Size

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 2174-6 21 Series Large Body Threaded Gas Shock, 7 Inch, 4-6 Valve
AFCO 2174-6 21 Series Large Body Threaded Gas Shock, 7 Inch, 4-6 Valve
Zoomed In Image
Part # 10621746
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
7.00" to 7.99"
Shock Stroke:
7.00
Compression Valving:
4
Rebound Valving:
6
Schrader Valve:
Yes
MFG. Part #:
2476-0
Sold in Quantity:
Each
Gas Charged:
Yes

Info

AFCOs sophisticated 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

  • Fixed valving in a gas pressure design
  • Threaded for coil-over applications
  • User serviceable/repairable
  • Late Model/Crate Late Model application

Late Model Swing Arm Gas Shock Chart (Link)

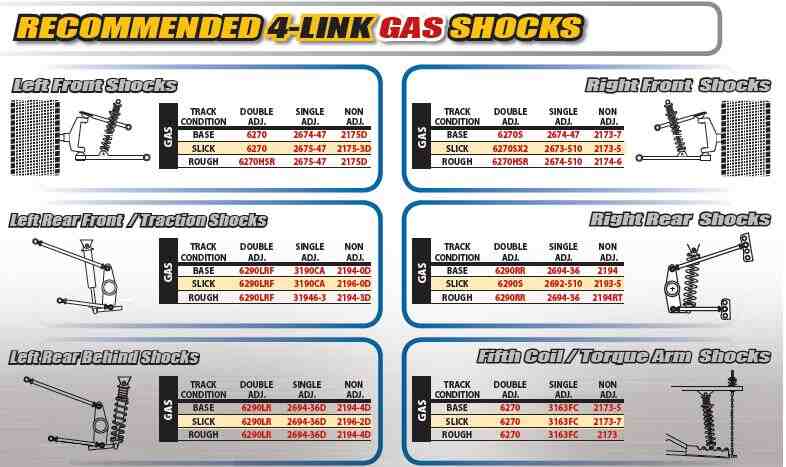

Late Model 4-Link Gas Shock Chart (Link)

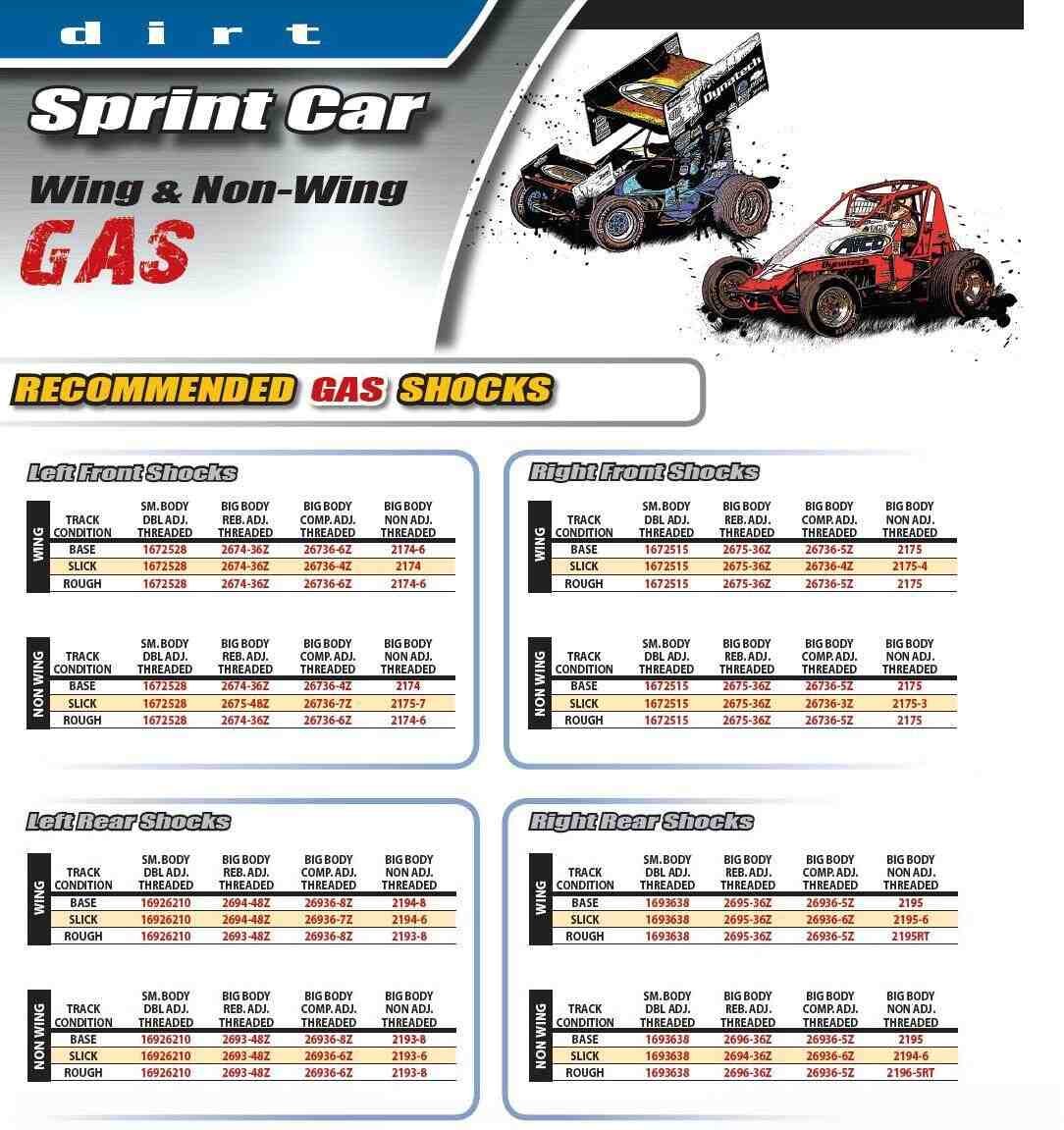

Dirt Sprint Wing and Non-Wing Gas Shock Chart (Link)

Item Details

4-6 ValveCompressed Length: 14.21"Extended Length: 20.15"Comp./Rebound: 4/6

Application

  • Dirt Late Model/Crate Late Model
    • Recommended Swing Arm Gas Shock
      • Left Front
        • Base Track Condition
      • Right Front
        • Rough Track Condition
    • Recommended 4-Link Gas Shock
      • Right Front
        • RoughTrack Condition
  • Sprint Car Wing - Dirt
    • Recommended Gas Shocks - Big Body Non-Adjustable Threaded
      • Left Front
        • Base, Rough Track Condition
  • Sprint Car Non-Wing - Dirt
    • Recommended Gas Shocks - Big Body Non-Adjustable Threaded
      • Left Front
        • Rough Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations
