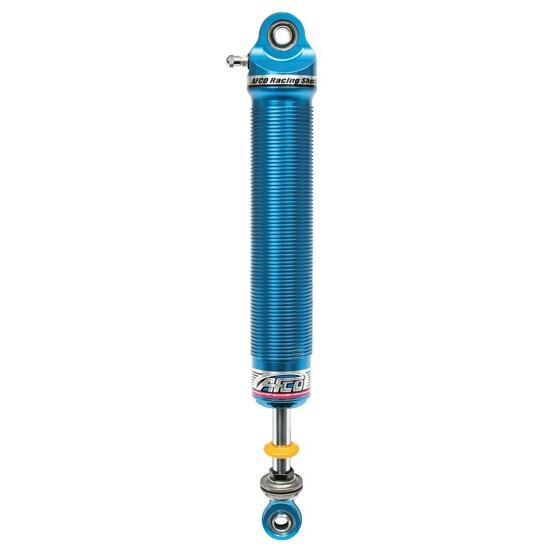

AFCO 2173-5 21 Series Large Body Threaded Gas Shock, 7 Inch, 3-5 Valve
AFCO 2173-5 21 Series Large Body Threaded Gas Shock, 7 Inch, 3-5 Valve

AFCO 2173-5 21 Series Large Body Threaded Gas Shock, 7 Inch, 3-5 Valve

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 2173-5 21 Series Large Body Threaded Gas Shock, 7 Inch, 3-5 Valve
AFCO 2173-5 21 Series Large Body Threaded Gas Shock, 7 Inch, 3-5 Valve
Zoomed In Image
Part # 10621735
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
2474-5
Shock Type:
Mono Tube
Adjustability:
Non-Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke:
7
Sold in Quantity:
Each

Info

AFCOs sophisticated 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

  • Fixed valving in a gas pressure design
  • Threaded for coil-over applications
  • User serviceable/repairable
  • Late Model/Crate Late Model application

Late Model Swing Arm Gas Shock Chart (Link)

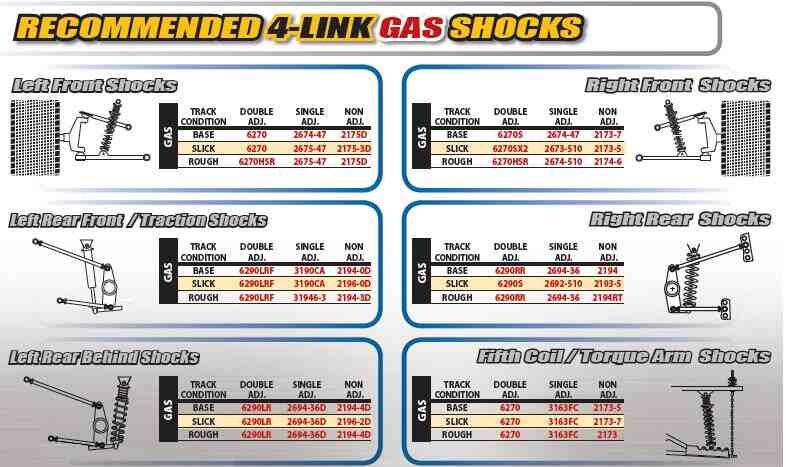

Late Model 4-Link Gas Shock Chart (Link)

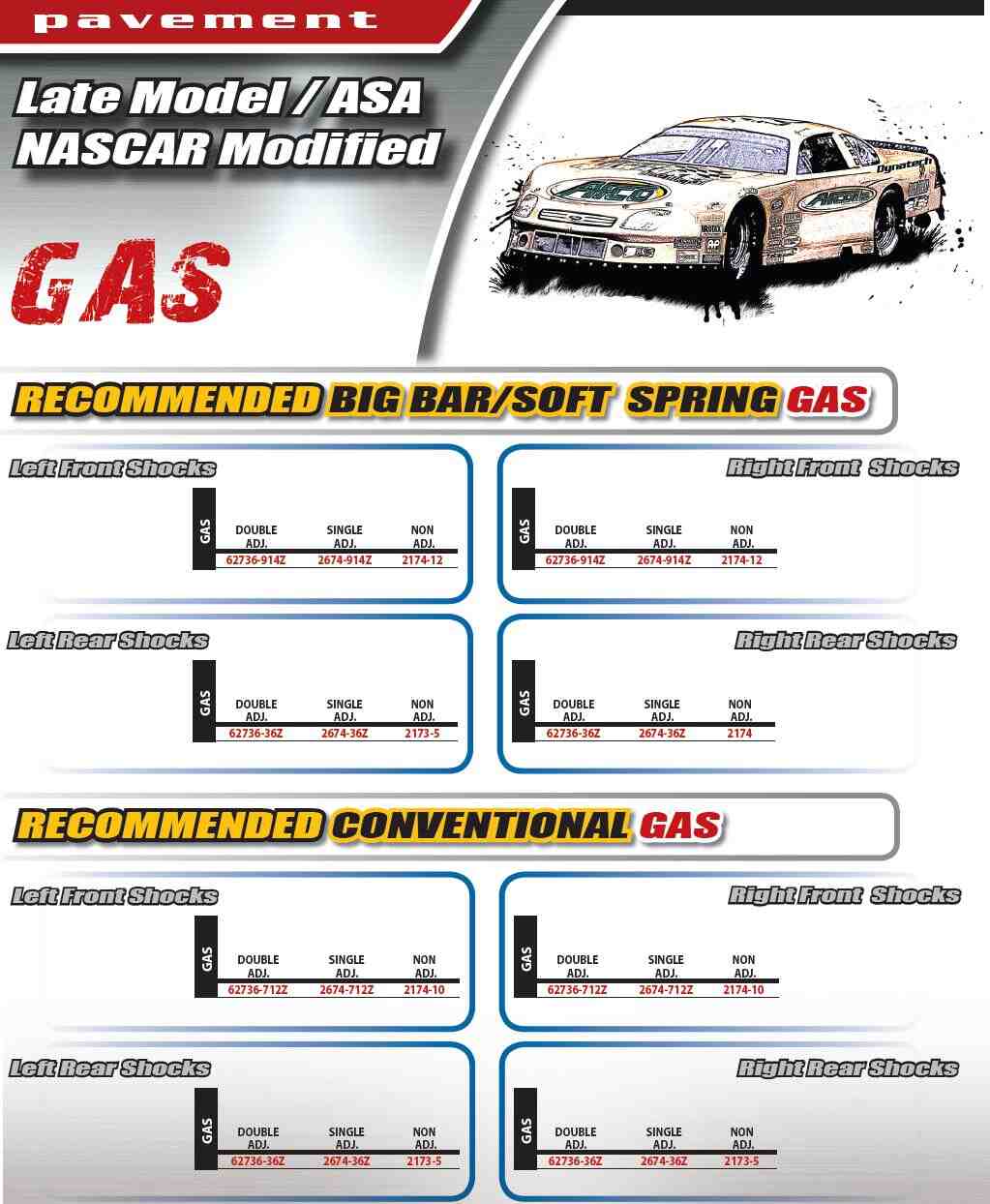

Late Model/ASA Modified Big Bar/Soft Spring and Conventional Gas Shock Chart (Link)

Item Details

3-5 ValveCompressed Length: 13.81"Extended Length: 19.71"Comp./Rebound: 3/5

Application

  • Dirt Late Model/Crate Late Model
  • Recommended Swing Arm Gas Shock
    • Right Front
      • Slick Track Condition
  • Recommended 4-Link Gas Shock
    • Right Front
      • Slick Track Condition
    • Fifth Coil/Torque Arm Shocks
      • Base Track Condition
  • Late Model / ASA NASCAR Modified - Pavement
    • Recommended Big Bar/Soft Spring Gas Shocks - Non-Adjustable
      • Left Rear
  • Late Model / ASA NASCAR Modified - Pavement
    • Recommended Conventional Gas Shocks - Non-Adjustable
      • Left/Right Rear
Some parts are not legal for use in California or other states with similar laws/regulations
