Add to Cart
$194.99

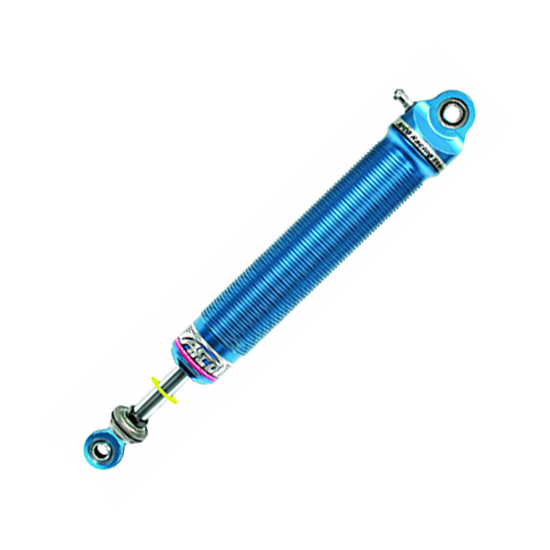

AFCO 21 Series Custom Racing Shock
AFCO 21 Series Custom Racing Shock

AFCO 21 Series Custom Racing Shock

Dirt Late Model, Pavement Late Model, Sprint Car, Mono Tube Shock Type, Left Position, Anodized

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 21 Series Custom Racing Shock
AFCO 21 Series Custom Racing Shock
Zoomed In Image
Part # 106210
$194.99
each
Quantity:
Left Side 0=n 1=y
Length
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Mono Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Aluminum
Shock Body Size:
Large Body
Shock Body Type:
Threaded
Shock Stroke Range:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Shock Stroke:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Position:
Left
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Compressed Length:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Extended Length Range:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Compressed Length Range:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Compression Valving:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Rebound Valving:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Schrader Valve:
Yes
Finish:
Anodized
Coil-Over Compatible:
Yes
External Canister:
No
Body Diameter:
2.17"
Rebuildable:
Yes
MFG. Part #:
Select Compression/Left Side 0=n 1=y/Length/Rebound to see
Sold in Quantity:
Each
Notes:
MADE TO ORDER
Inside Diameter:
46 mm
Thread Length:
7.5"
Shock Eyelet Width:
.625"
Hardware Included:
No
Gas Charged:
Yes

Info

Exclusively at Speedway Motors you can now order your custom AFCO shocks online!

AFCO's sophisticated 21 Series aluminum body fixed valve gas pressure shocks feature deflective disc technology in an economical, rules-friendly, non-adjustable package. These lightweight aluminum shocks are sure to be the answer for any racer under constraints to experience the superb handling of gas-charged shocks.

    Fixed valving in a gas pressure design
    Threaded for coil-over applications
    User serviceable/repairable
    Late Model/Crate Late Model application

Choose:

  • Length - 7 or 9"
  • Left side shock - 0=No, 1=Yes
  • Compression Valving - 0-13
  • Rebound Valving - 0-13

Note: This shock is custom valved and assembled by our expert staff. Due to its custom nature, it cannot be returned for a refund.

Application

Application: Circle/Oval Dirt Track Racing
  • Dirt Late Model/Crate Late Model
  • Recommended 4-Link Gas Shock
  • Fifth Coil/Torque Arm Shocks
  • Rough Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations
