AFCO 20250 Lower Leaf Spring Shock Mount Plate, RH
AFCO 20250 Lower Leaf Spring Shock Mount Plate, RH
AFCO

|

#10620250

AFCO 20250 Lower Leaf Spring Shock Mount Plate, RH

Side:

Right Hand

Left Hand

$26.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, .25" Overall Thickness, Steel, Painted

    See more details

    Key Specs

    MFG. Part #20250
    BrandAFCO
    Material TypeSteel
    FinishPainted
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 20250 Details

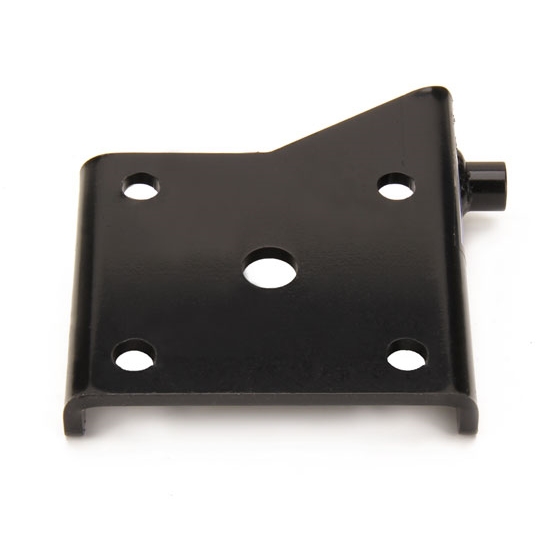

    These rigid steel shock mounting plates from AFCO are superior quality pieces at a super low price.

    • Mounting square center to center measurements are 3.00" x 3.50"
    • Mounting holes are .50" I.D.
    • Center hole is .75" I.D. and centered 2.75" from the turndown edges of the plate
    • Plate itself is .25" thick
    • From the flat of the plate to the outer lip of the shock mount is 2.25" (1.50" to the center of shock mount hole)

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 20250 Specifications

    KEY SPECS
    MFG. Part #20250
    BrandAFCO
    Material TypeSteel
    FinishPainted
    GENERAL
    Overall Thickness.25"
    Hardware IncludedNo
    Sold in QuantityEach

    Ratings & Reviews

    5

    3 Reviews

    Overall Assessment

    Customers praise the product's versatility, with one reviewer successfully using it on a 1949 Ford Wagon. Despite requiring slight modifications, it still proved to be a perfect fit. The product possesses toughness and durability, with users confident about its ability to withstand intense use. The only improvement suggested is incorporating a hardened bolt. Compared to competitors' products, it stands out for its rugged build and adaptability. Users recommend it as a leaps-and-bounds better solution due to its confirmed qualities and practical features.

    Write A Review

    5

    3 reviews

    5

    3

    4

    0

    3

    0

    2

    0

    1

    0

    Filter by Ratings

    Looks great

    5.0

    9 months ago

    None

    Eastern Kansas

    Verified

    I will be putting these on my 68 ranchero

    Would Recommend

    Amazing to find out it also fit a 1949 Ford Wagon!

    5.0

    a year ago

    Rich

    Sacramento, CA

    Verified

    used this to hang a 9" rear end under my 49 Ford Woodie wagon. I had to make a slight modifications to the plates but I had planned to do so when I purchased them. They worked out perfectly.

    Would Recommend

    leaf spring mounting plate !!

    5.0

    9 years ago

    Diesel dan

    maryland

    Verified

    rugged built ,im sure they will take the hardest of starts , about the only drawback I see is that shock needs to use a hardened bolt instead of stock one , this is due to only one side of shock contacting bracket , it would be better if this either came with grade eight bolts or a two sided shock mounting

    Would Recommend

    Showing 3 of 3 reviews

    Questions & Answers

    2 Questions • 2 Answers

    Will this accept 3.00 or 3.250 u-bolts. Is it orientated as shown. U-bolts to go up and down as shown or left and right?

    by Kelly

    • 9 years ago

    1 answer

    View Answer

    Is the 3.5 inch measured along the folded edge?

    by ShaCharlie

    • 12 years ago

    1 answer

    View Answer
