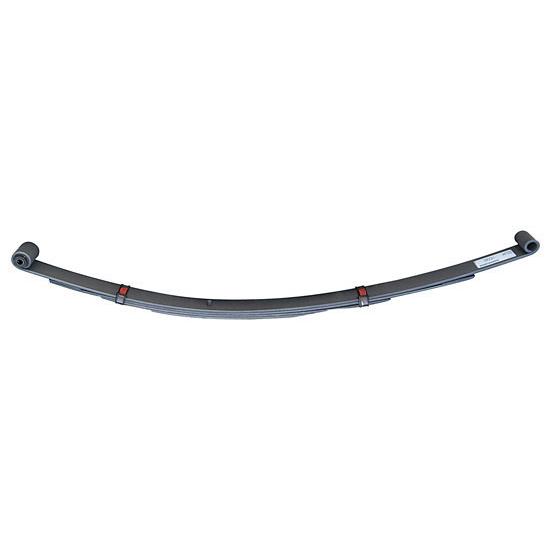

AFCO 20231XHD Chrysler Type Multi-Leaf Spring-194 Lb Rate, 5 Inch Arch
AFCO 20231XHD Chrysler Type Multi-Leaf Spring-194 Lb Rate, 5 Inch Arch

AFCO 20231XHD Chrysler Type Multi-Leaf Spring-194 Lb Rate, 5 Inch Arch

Hobby Stock, Modified, Sport Mod, Stock Car, Rear Position, Standard Eye Leaf Spring Eye Type

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 20231XHD Chrysler Type Multi-Leaf Spring-194 Lb Rate, 5 Inch Arch
AFCO 20231XHD Chrysler Type Multi-Leaf Spring-194 Lb Rate, 5 Inch Arch
Zoomed In Image
Part # 10620231XHD
$199.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Rear
Leaf Spring Eye Type:
Standard Eye
Spring Rate:
194 lbs.
Length Eye to Eye:
50.88"
Leaf Spring Width:
2-1/2 Inch
True Arch:
6.63"
Suspension Height Adjustment:
Stock Height
Number of Leafs:
5
Material Type:
Steel
Finish:
Natural
MFG. Part #:
20231XHD
Sold in Quantity:
Each
Front Eye I.D.:
1.5"
Rear Eye I.D.:
1.0"

Info

Racers using leaf springs realize the importance of accurate arch, load capacity and durability. This AFCO leaf spring is the highest quality racing spring available and give you features not available in any other leaf spring. This multi-leaf spring is constructed from high-quality chrom-vanadium steel and set to actual arch following the closest standards in the racing industry. The spring is then heat-treated to provide long life. The final process includes shot-peening to relieve stress in the materials.

  • Chrom-vanadium alloy spring steel material is superior to others and provides consistent rates over a longer life span
  • Teflon rub blocks between leafs reduces friction and maintains consistency of rate
  • Tapered leafs reduce stress by 30-40%, prevents loss of arch
  • Front bushing included
  • Shot-peened after arching to reduce tensile stress, provides 3-5 times more service life to the spring
  • Fits 1966-74 Mopar B body cars
  • Car Weight: 3100-3500 lbs
  • Arch: 6-5/8"
  • Nominal Rate: 194
  • Popular choice rate for stock replacement is 142, 4" arch (20230)

Front bushing included.

AFCO Spring Rate Chart (GIF)

Some parts are not legal for use in California or other states with similar laws/regulations
