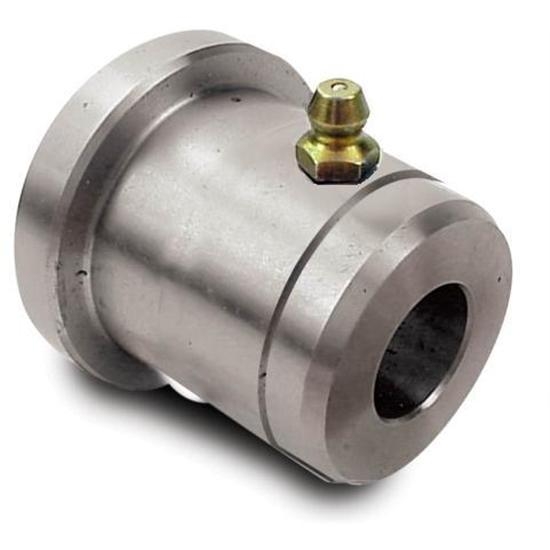

AFCO 20078 Steel Upper Control Arm Bushing, 1.275 O.D. x .670 I.D.

#10620078

AFCO 20078 Steel Upper Control Arm Bushing, 1.275 O.D. x .670 I.D.

Minimizes alignment change during cornering since they do not deflect
Dramatically frees up front suspension
Dimensions allow direct replacment of the standard bushing

$42.99

/each

In Stock

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Steel Bushing Material, 1.275" Overall Diameter, Steel

Minimizes alignment change during cornering since they do not deflect
Dramatically frees up front suspension
Dimensions allow direct replacment of the standard bushing
Inner sleeve allows bolt to be tightened without crushing or binding

See more details

Key Specs

Bushing Material	Steel
Overall Diameter	1.275"
Overall Length	1.50"
Inside Diameter	.670"
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 20078 Details

Minimizes alignment change during cornering since they do not deflect
Dramatically frees up front suspension
Dimensions allow direct replacment of the standard bushing
Inner sleeve allows bolt to be tightened without crushing or binding
Includes a grease zerk fitting for lubrication

Note: Due to production tolerance variance in original equipment parts, steel bushings need to be tack welded into the control arm.

Item Details

1.275" O.D. x .670" I.D. x 1.50" long

Charts

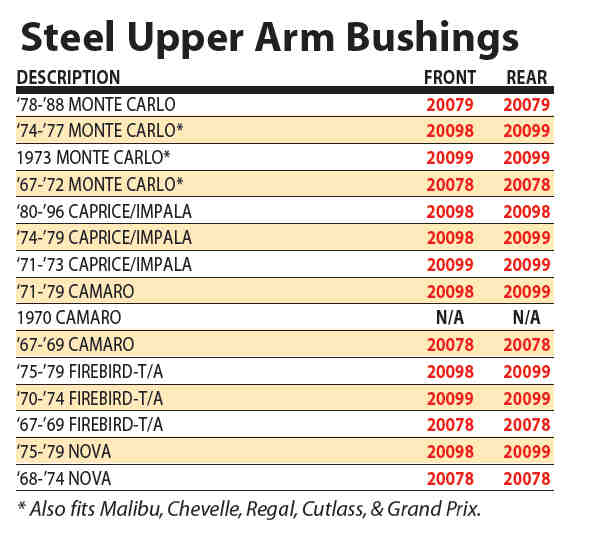

Upper A-Arm Bushing Application Chart (GIF)

Guides & Documents

Control Arm Bushings Technical Information (10620078)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 20078 Specifications

KEY SPECS
MFG. Part #	20078
Brand	AFCO
Bushing Material	Steel
Overall Diameter	1.275"
Overall Length	1.50"
Inside Diameter	.670"
Material Type	Steel
Finish	Natural

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1973-1974 Buick Apollo

1966-1972 Buick Skylark

1966-1969 Buick Special

1955-1970 Chevy Bel Air

1958-1970 Chevy Biscayne

1958 Chevy Brookwood

1967-1969 Chevy Camaro

1966-1970 Chevy Caprice

1964-1972 Chevy Chevelle

1968 Chevy Chevy II

1961-1964 Chevy Corvair Truck

1963-1982 Chevy Corvette

1964-1972 Chevy El Camino

1959-1970 Chevy Impala

1964-1967 Chevy Malibu

1970-1972 Chevy Monte Carlo

1969-1974 Chevy Nova

1955-1957 Chevy One-Fifty Series

1955-1957 Chevy Two-Ten Series

1971-1972 GMC Sprint

1965-1972 Oldsmobile Cutlass

1967-1972 Oldsmobile Cutlass Supreme

1965-1972 Oldsmobile F85

1973-1974 Oldsmobile Omega

1967-1969 Pontiac Firebird

1969-1972 Pontiac Grand Prix

1964-1971 Pontiac GTO

1964-1972 Pontiac LeMans

1964-1970 Pontiac Tempest

1971-1974 Pontiac Ventura
