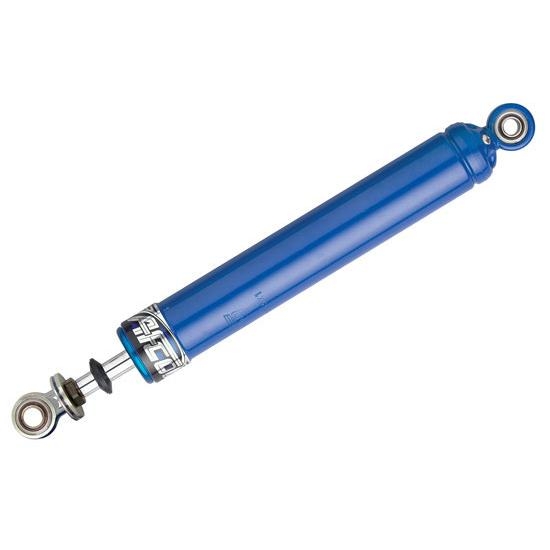

AFCO 19E2-LR-HR-RR-B Edge Super 9 Shock H/R Left Rear Right Rear Base

Name: AFCO 19E2-LR-HR-RR-B Edge Super 9 Shock H/R Left Rear Right Rear Base
Brand: AFCO
SKU: 10619E2LRHRRRB
Price: 224.99 USD
Availability: InStock

Write a Review

Ask a Question

$224.99

/each

Factory Shipped

$249.99

Save $25.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Stock Car, Twin Tube Shock Type, Smooth Shock Body Type

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2.02"
Shock Body Type	Smooth

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 19E2LRHRRRB Details

(1) 106-19E2LRHRRRB Left Rear - Heavy/Rough, Right Rear - Base Set-Up

The EDGE valve is more than one special valve code. It is an entire package of specifically engineered racing shocks that work together to provide a performance edge that you will feel the first time you take to the track.

If you want to take the guesswork out of your shock set-up, the new line of AFCO EDGE Valve shocks is your answer. The unique resistance curve of EDGE Valve shocks is very different than the resistnace curve provided by generic, off the shelf, 3, 4, 6, 5, 6 etc. type compression and rebound valves. They use deflective disc technology and are user rebuildable. Each EDGE shock listed is desgined to provide specific rebound and compression dampening at both low and high speed shaft velocities to maximize handling for specific track conditions on street stock/superstock equipped with GM 4 link rear suspension that can run non-stock rod end style shocks.

Charts

Tuning Guide (PDF)

Guides & Documents

Shocks Installation Instructions (10619E2LRHRRRB)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

AFCO 19E2LRHRRRB Specifications

KEY SPECS
MFG. Part #	19E2LRHRRRB
Brand	AFCO
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2.02"
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"
Position	Rear
Stroke	9"
Compression Valving	Custom
Rebound Valving	Custom
Mount Position	Stock Mount
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	23.00" to 23.99"
Extended Length	23.75"
Compressed Length Range	14.00" to 14.99"
Finish	Painted
Compressed Length	14.85"
Gas Charged	Yes

GENERAL
Rebuildable	Yes
Schrader Valve	No
Shock Stroke	9.00
Bolt Hole Circle	0.5"
Sold in Quantity	Each
