#10619E1LRS

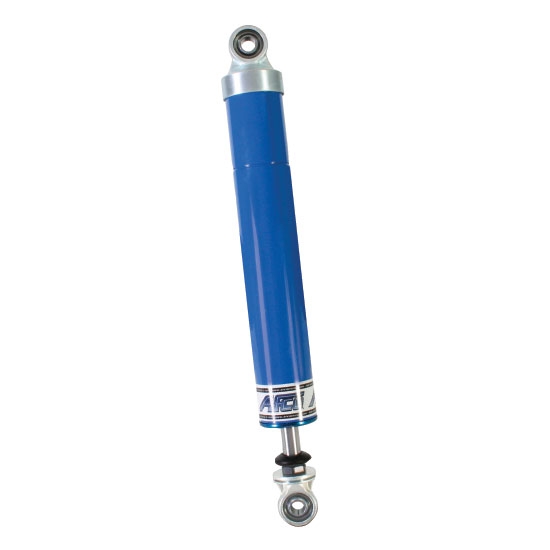

AFCO 19E1-LR-S Edge Modified Shock, Slick, LR
$248.99
/each
Factory Shipped
$249.99
Save $1.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#10619E1LRS
$248.99
/each
Factory Shipped
$249.99
Save $1.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2.02" |
| Shock Body Type | Smooth |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyThe EDGE valve is more than one special valve code. It is an entire package of specifically engineered racing shocks that work together to provide a performance edge that you will feel the first time you take to the track.
If you want to take the guesswork of out of your shock set-up, the new line of Afco EDGE Valve shock is your answer. The unique resistance curve of EDGE Valve shocks is very different than the resistance curve provided by generic, off the shelf, 3, 4, 5, 6 etc. Type compression and rebound valves. They use deflective disc technology and are user rebuildable. Each EDGE shock listed is designed to provide specific rebound and compression dampening at both low and high speed shaft velocities to maximize handling for specific track conditions on modifieds equipped with 4 link and/or Watts (Z-Link) suspension only.
Charts
Tuning Guide (PDF)
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 19E1LRS |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2.02" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Rear Left |
| Stroke | 9" |
| Compression Valving | Custom |
| Rebound Valving | Custom |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.75" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Painted |
| Compressed Length | 14.85" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | No |
| Shock Stroke | 9.00 |
| Bolt Hole Circle | 0.5" |
| Sold in Quantity | Each |
1 Question • 1 Answer
Will these work on a 3 link dirt modified?
by Clay
• 7 years ago
1 answer
View Answer
1 of 1 questions shown
