The EDGE valve is more than one special valve code. It is an entire package of specifically engineered racing shocks that work together to provide a performance edge that you will feel the first time you take to the track.

If you want to take the guesswork of out of your shock set-up, the new line of AFCO EDGE Valve shocks is your answer. The unique resistance curve of EDGE Valve shocks is very different than the resistance curve provided by generic, off the shelf, 3, 4, 5, 6 etc. Type compression and rebound valves. They use deflective disc technology and are user rebuildable. Each EDGE shock listed is designed to provide specific rebound and compression dampening at both low and high speed shaft velocities to maximize handling for specific track conditions on modifieds equipped with 4 link and/or Watts (Z-Link) suspension only.

Charts

Tuning Guide (PDF)

Guides & Documents

Shocks Installation Instructions (10619E1LFB)

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

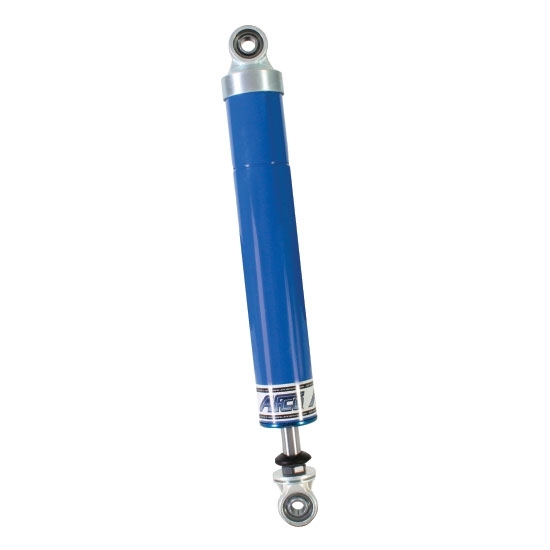

AFCO 19E1LFB Specifications

KEY SPECS
MFG. Part #	19E1LFB
Brand	AFCO
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Shock Body Type	Smooth
Shock Body Size	Large Body
Shock Stroke Range	9.00" to 9.99"
Position	Front Left
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End

GENERAL
Rebuildable	Yes
Schrader Valve	No
Shock Stroke	9.00
Sold in Quantity	Each
