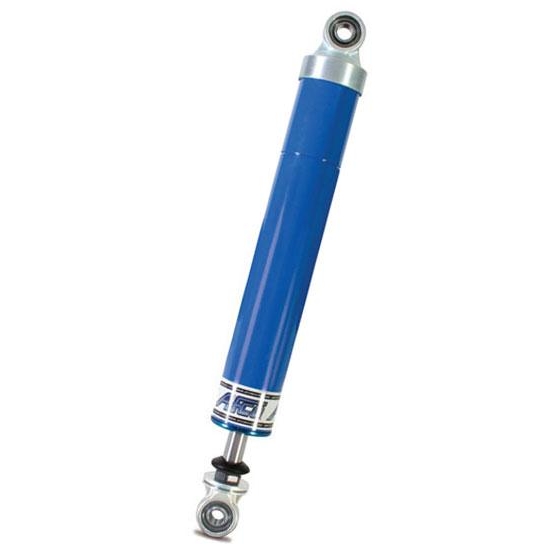

AFCO 1999-2 19 Series Large Steel Twin-Tube Shock-9 Inch, Comp 9/Reb 2
AFCO 1999-2 19 Series Large Steel Twin-Tube Shock-9 Inch, Comp 9/Reb 2

AFCO 1999-2 19 Series Large Steel Twin-Tube Shock-9 Inch, Comp 9/Reb 2

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 1999-2 19 Series Large Steel Twin-Tube Shock-9 Inch, Comp 9/Reb 2
AFCO 1999-2 19 Series Large Steel Twin-Tube Shock-9 Inch, Comp 9/Reb 2
Zoomed In Image
Part # 10619992
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke Range:
9.00" to 9.99"
Shock Stroke:
9.00
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
23.5"
Compressed Length:
14.75"
Extended Length Range:
23.00" to 23.99"
Compressed Length Range:
14.00" to 14.99"
Compression Valving:
9
Rebound Valving:
2
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
9 compression - 2 rebound
MFG. Part #:
1999-2
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO R-Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body. All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability.

AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry. With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.

  • Large 2.02" O.D. body and full 5/8" shaft provide increased strength
  • Twin tube design for those "hard-to-get-a-hold-of" tracks
  • Owner rebuildable and serviceable
  • Shim stack technology provides consistent results
  • 100% dyno tested, rebuildable and revalvable

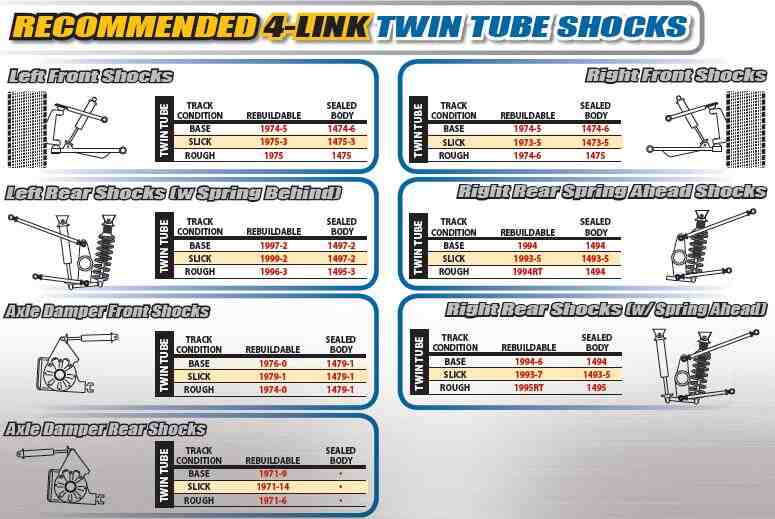

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

Item Details

Compressed Length: 14.75"
Extended Length: 23.50"
Comp. / Rebound: 9/2

Application

Big Body Popular Applications:

  • Modifieds
  • Late Models
  • Limited Late Models
  • Open Wheel
  • Street Stocks
  • Super Street Stocks
  • Dirt Modifieds
  • Recommended 4-Link Twin Tube Shocks-Rebuildable
    • Left Rear (w/Spring Behind)
      • Slick Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations
