#10619990

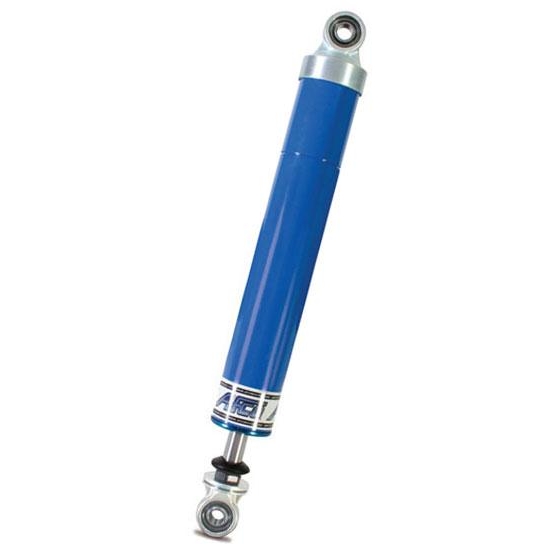

AFCO 1999-0 Big Body Rebuildable Twin-Tube Shock, 9 Inch, Comp 9/Reb 0
$224.99
/each
Factory Shipped
$249.99
Save $25.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1999-0 Details
AFCO 1999-0 Details
AFCO 19 Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body. All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability. The larger body and the full 5/8" shaft of the Big Body provides increased strength, as well as the flexibility of a standard size coilover spring.
AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry. With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.
- 100% dyno tested, rebuildable and revalvable
- Compressed Length: 14.75"
- Extended Length: 23.50"
Item Details
Compressed Length: 14.75"Extended Length: 23.50"
Comp/Rebound: 9/0
Warranty Information
Click for details
Warranty Information
Click for details
AFCO 1999-0 Specifications
AFCO 1999-0 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1999-0 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 9 |
| Rebound Valving | 0 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.75" |
| Finish | Powder Coated |
| GENERAL | |
| Shock Stroke | 9.00 |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| Valve Positions | 9 compression - 0 rebound |
| Rebuildable | Yes |
| Sold in Quantity | Each |
| Shock Eyelet Width | .625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
