#10619974

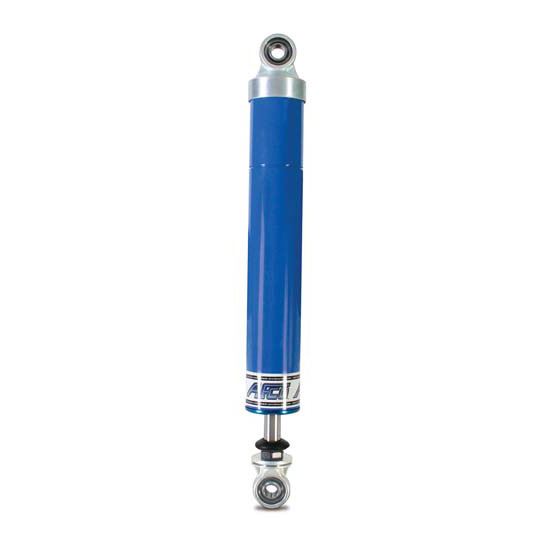

AFCO 1997-4 Steel Shock Twin Tube 19 Series 9 Inch Stroke
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before March 27th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Sport Mod, Stock Car, Twin Tube Shock Type
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1997-4 Details
AFCO 1997-4 Details
AFCO steel body, 19 series, big body 2.02" outside diameter, take apart, rebuildable, revalvable, twin-tube design, coil-over or non coil-over applications. 7 valve compression and 4 valve rebound. 9" stoke, special valve . Coil kit for 2 5/8" springs (20125AR), 5" springs (20125A-7KR) bearing ends, compressed length 14.85", extended length 23.76".
AFCO 1997-4 Specifications
AFCO 1997-4 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1997-4 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| GENERAL | |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 7 |
| Rebound Valving | 4 |
| Shock Stroke | 9.00 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Compressed Length | 14.75" |
| Schrader Valve | No |
| Finish | Powder Coated |
| Coil-Over Compatible | Yes |
| Rebuildable | Yes |
| Sold in Quantity | Each |
