#10619973

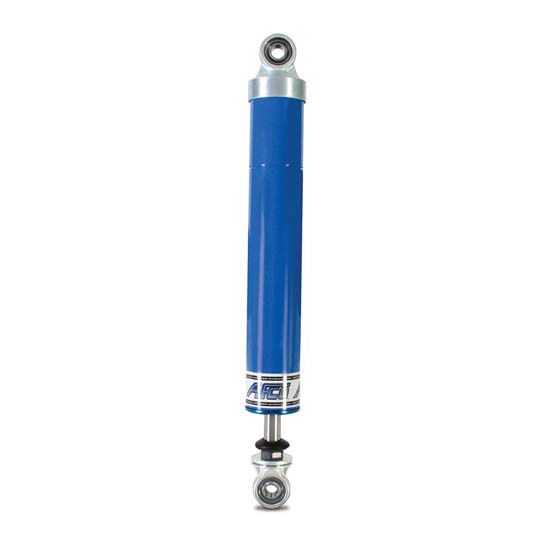

AFCO 1997-3 Steel Shock Twin Tube 19 Series 9 Inch Stroke
$249.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
|
#10619973
$249.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
Made to Order
This custom item will ship when completed
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO steel body, 19 series, big body 2.02" outside diameter, take apart, rebuildable, revalvable, twin-tube design, coil-over or non coil-over applications. 7 valve compression and 3 valve rebound. 9" stoke, special valve . Coil kit for 2 5/8" springs (20125AR), 5" springs (20125A-7KR) bearing ends, compressed length 14.85", extended length 23.76".
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 1997-3 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Body Diameter | 2" |
| Shock Body Type | Smooth |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Front or Rear |
| Stroke | 9" |
| Compression Valving | 7 |
| Rebound Valving | 3 |
| Mount Position | Stock Mount |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Powder Coated |
| Compressed Length | 14.75" |
| Gas Charged | Yes |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | No |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Bolt Hole Circle | 0.5" |
| Sold in Quantity | Each |
