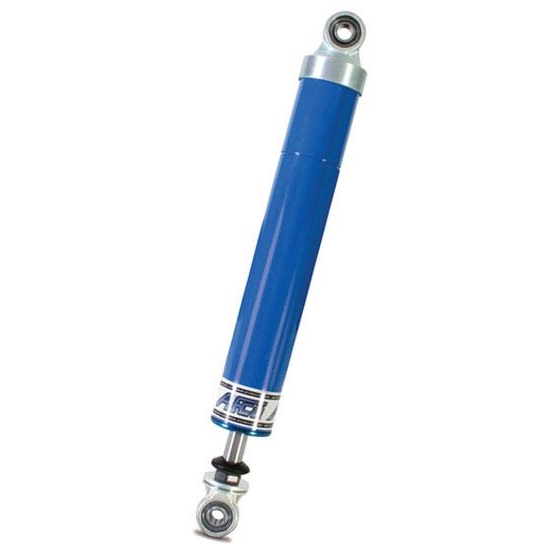

AFCO 1994 R Series Large Body Steel Twin-Tube Shock-9 In, Comp 4/Reb 4
AFCO 1994 R Series Large Body Steel Twin-Tube Shock-9 In, Comp 4/Reb 4

AFCO 1994 R Series Large Body Steel Twin-Tube Shock-9 In, Comp 4/Reb 4

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
AFCO 1994 R Series Large Body Steel Twin-Tube Shock-9 In, Comp 4/Reb 4
AFCO 1994 R Series Large Body Steel Twin-Tube Shock-9 In, Comp 4/Reb 4
Zoomed In Image
Part # 1061994
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

MFG. Part #:
1994
Shock Type:
Twin Tube
Coil-Over Compatible:
Yes
Shock Body Material:
Steel
Shock Body Size:
Large Body
Shock Body Type:
Smooth
Shock Stroke:
9
Upper Shock Mount:
1/2 Inch Eyelet
Lower Shock Mount:
1/2 Inch Eyelet
Extended Length:
23.50"
Compressed Length:
14.75"
Body Diameter:
2.00"
Finish:
Powder Coated
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No
Material Type:
Steel

Info

AFCO R-Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body. All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability.

AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry. With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.

  • Large 2.02" O.D. body and full 5/8" shaft provide increased strength
  • Twin tube design for those "hard-to-get-a-hold-of" tracks
  • Owner rebuildable and serviceable
  • Shim stack technology provides consistent results
  • 100% dyno tested, rebuildable and revalvable

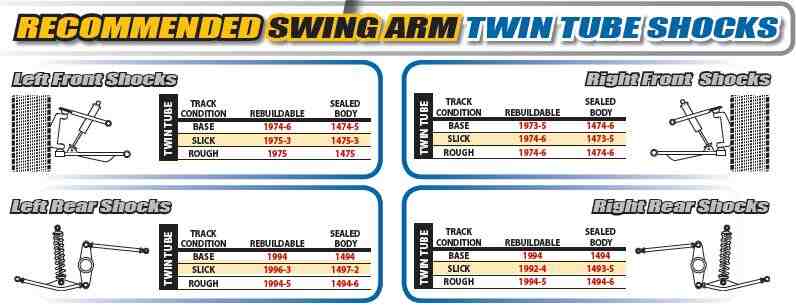

Dirt Modified Swing Arm Twin Tube Shock Chart (Link)

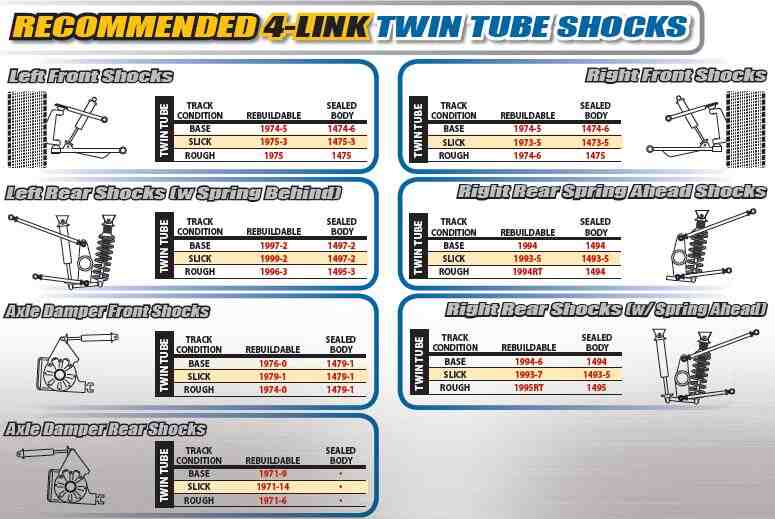

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

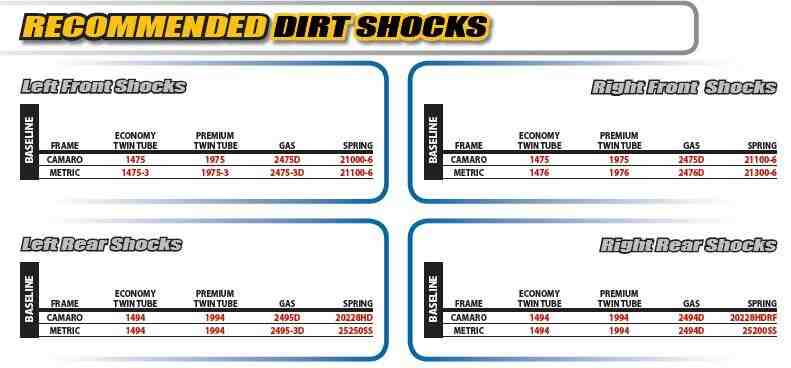

Dirt Street and Super Stock Shock Chart (Link)

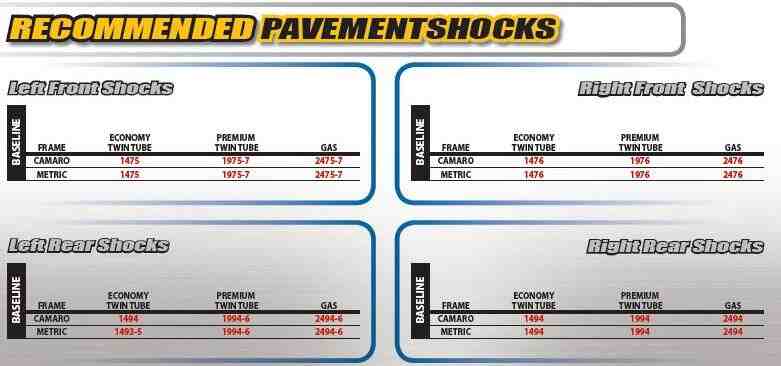

Pavement Street and Super Stock Shock Chart (Link)

Item Details

Compressed Length: 14.75"
Extended Length: 23.50"
Comp. / Rebound: 4/4

Application

Big Body Popular Applications:

  • Modifieds
  • Late Models
  • Limited Late Models
  • Open Wheel
  • Coilover or Conventional Spring
  • Dirt Modifieds
  • Recommended Swing Arm Twin Tube Shocks-Rebuildable
    • Left or Right Rear
      • Base Track Condition
  • Recommended 4-Link Twin Tube Shocks-Rebuildable
    • Right Rear Spring Ahead Shocks
      • Base Track Condition
  • Street Stocks and Super Stocks - Dirt/Pavement
  • Recommended Dirt Shocks - Premium Twin Tube
    • Left or Right Rear
      • Camaro, Metric Frame
  • Recommended Pavement - Premium Twin Tube
    • Right Rear
      • Camaro, Metric Frame
Some parts are not legal for use in California or other states with similar laws/regulations
