#1061993

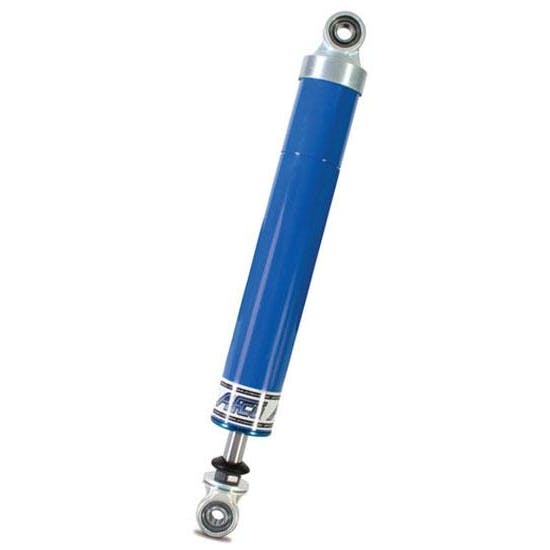

AFCO 1993 R Series Large Body Steel Twin-Tube Shock-9 In, Comp 3/Reb 3
$209.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before December 26th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Twin Tube Shock Type
See more details
Key Specs
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Steel |
Body Diameter | 2" |
Shock Body Type | Smooth |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1993 Details
AFCO 1993 Details
AFCO R-Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body. All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability.
AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry. With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.
- Large 2.02" O.D. body and full 5/8" shaft provide increased strength
- Twin tube design for those "hard-to-get-a-hold-of" tracks
- Owner rebuildable and serviceable
- Shim stack technology provides consistent results
- 100% dyno tested, rebuildable and revalvable
Item Details
Compressed Length: 14.75"Extended Length: 23.50"
Comp. / Rebound: 3/3
Application
Big Body Popular Applications:
- Modifieds
- Late Models
- Limited Late Models
- Open Wheel
- Street Stocks
- Super Street Stocks
AFCO 1993 Specifications
AFCO 1993 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 1993 |
Brand | AFCO |
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Steel |
Body Diameter | 2" |
Shock Body Type | Smooth |
Shock Body Size | Large Body |
Shock Stroke Range | 9.00" to 9.99" |
Compression Valving | 3 |
Rebound Valving | 3 |
Extended Length Range | 23.00" to 23.99" |
Extended Length | 23.5" |
Compressed Length Range | 14.00" to 14.99" |
Compressed Length | 14.75" |
Finish | Powder Coated |
GENERAL | |
Shock Stroke | 9.00 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Schrader Valve | No |
Coil-Over Compatible | Yes |
Valve Positions | 3 compression - 3 rebound |
Rebuildable | Yes |
Sold in Quantity | Each |
Shock Eyelet Width | .625" |
Bolt Hole Circle | .500" |
Hardware Included | No |
