#1061992
AFCO 1992 Steel Shock Twin Tube 19 Series 2/2 9 Inch Stroke Big Body
$249.99
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1992 Details
AFCO 1992 Details

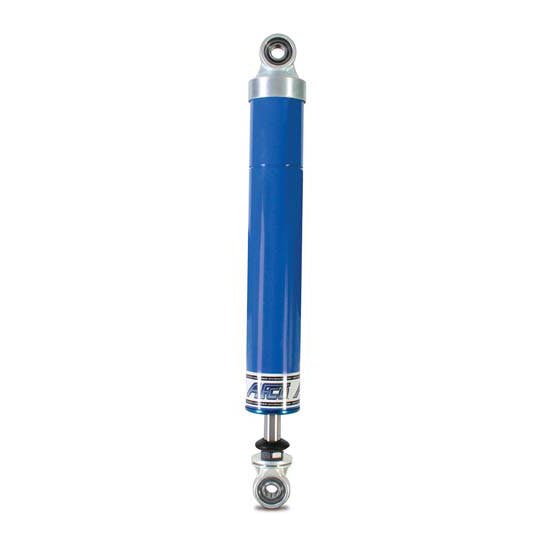

AFCO steel take apart shocks. Owner rebuildable, twin tube, will work with or without coil-over spring. Body is 2.02" outside diameter, so it will fit most modifieds on the market. 9" stroke,2 valve compression and rebound. 14.85" compressed and 23.76" extended.
Warranty Information
Click for details
Warranty Information
Click for details
Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.
AFCO 1992 Specifications
AFCO 1992 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1992 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Compression Valving | 2 |
| Rebound Valving | 2 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 23.00" to 23.99" |
| Extended Length | 23.5" |
| Compressed Length Range | 14.00" to 14.99" |
| Finish | Powder Coated |
| Compressed Length | 14.75" |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | No |
| Shock Stroke | 9.00 |
