Add to Cart
$174.99
$149.99

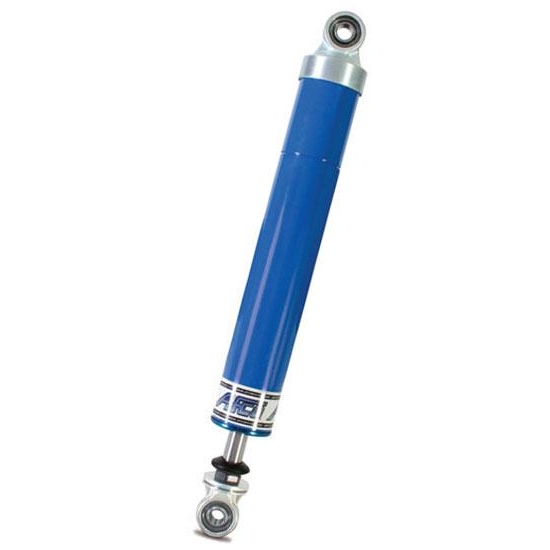

AFCO 1976 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 6/Reb 6
AFCO 1976 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 6/Reb 6

AFCO 1976 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 6/Reb 6

Modified, Stock Car, Twin Tube Shock Type, Non-Adjustable Shock Adjustability, Powder Coated

0 Reviews | 0 Answered Questions
On Backorder
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
AFCO 1976 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 6/Reb 6
AFCO 1976 19 Series Big Rebuildable Twin-Tube Shock-7 In.-Comp 6/Reb 6
Zoomed In Image
Part # 1061976
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Shock Type:
Twin Tube
Shock Adjustability:
Non-Adjustable
Shock Body Material:
Steel
Shock Body Size:
Large Body
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.5"
Compressed Length:
12.75"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
6
Rebound Valving:
6
Schrader Valve:
No
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
6 compression - 6 rebound
Rebuildable:
Yes
MFG. Part #:
1976-
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO R-Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body.  All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability.

AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry.  With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.

All AFCO R-Series Shocks are 100% dyno tested, rebuildable and revalvable.

  • Compressed Length: 12.75"
  • Extended Length: 19.50"

The larger body and the full 5/8" shaft of the Big Body provides increased strength, as well as the flexibility of a standard size coilover spring.

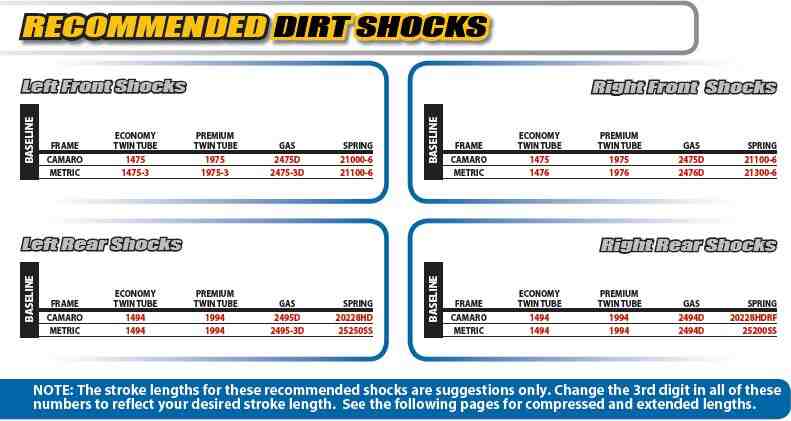

Dirt Street and Super Stock Shock Chart (Link)

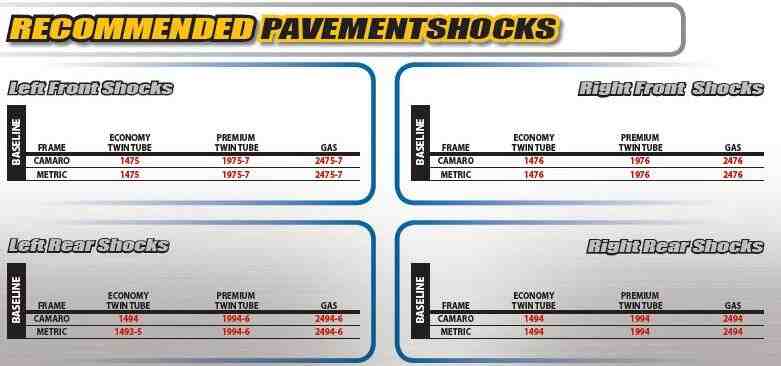

Pavement Street and Super Stock Shock Chart (Link)

Item Details

12.75" Comp, 19.50" Ext
Comp/Rebound: 6/6

Application

Big Body Popular Applications:

  • Modifieds
  • Late Models
  • Limited Late Models
  • Open Wheel
  • Coilover or Conventional Spring
  • Street Stocks and Super Stocks - Dirt/Pavement
  • Recommended Dirt Shocks - Premium Twin Tube
    • Right Front
      • Metric Frame
  • Recommended Pavement - Premium Twin Tube
    • Right Front
      • Camaro, Metric Frame
Some parts are not legal for use in California or other states with similar laws/regulations
