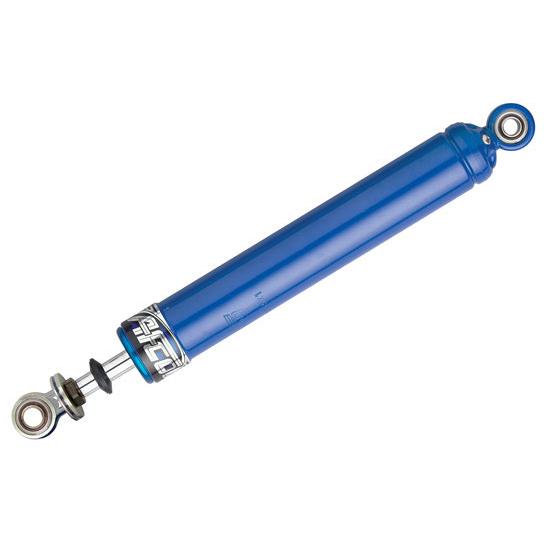

AFCO 1974-6 Big Body Rebuildable Twin-Tube Shock, 7 Inch, Comp 4/Reb 6
AFCO 1974-6 Big Body Rebuildable Twin-Tube Shock, 7 Inch, Comp 4/Reb 6

AFCO 1974-6 Big Body Rebuildable Twin-Tube Shock, 7 Inch, Comp 4/Reb 6

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
AFCO 1974-6 Big Body Rebuildable Twin-Tube Shock, 7 Inch, Comp 4/Reb 6
AFCO 1974-6 Big Body Rebuildable Twin-Tube Shock, 7 Inch, Comp 4/Reb 6
Zoomed In Image
We estimate this item will ship on or before December 12th.
Part # 10619746
Save 14%
$149.99
$174.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 1 business days for AFCO to ship this item.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Shock Type:
Twin Tube
Shock Body Material:
Steel
Shock Body Size:
Large Body
Upper Shock Mount:
1/2" Spherical Rod End
Lower Shock Mount:
1/2" Spherical Rod End
Extended Length:
19.5"
Compressed Length:
12.75"
Extended Length Range:
19.00" to 19.99"
Compressed Length Range:
12.00" to 12.99"
Compression Valving:
4
Rebound Valving:
6
Finish:
Powder Coated
Coil-Over Compatible:
Yes
Body Diameter:
2.00"
Valve Positions:
4 compression - 6 rebound
MFG. Part #:
1974-6
Sold in Quantity:
Each
Shock Eyelet Width:
.625"
Bolt Hole Circle:
.500"
Hardware Included:
No

Info

AFCO R-Series Twin-Tube Shocks are packed with quality, performance and value, all inside a rebuildable steel body.  All internal parts of the AFCO Steel Take-A-Part shocks are identical to the components inside the aluminum body shocks, so you can expect the highest levels of performance and durability.

AFCO Steel Body Take-A-Part Shocks let you meet your "steel shock rule" and still allow you to run the most precise shock in the industry.  With the Take-A-Part, you are no longer limited to "off the shelf valves," and you can have the performance of your used shocks brought back to full factory spec with a rebuild rather than having to purchase a new shock.

All AFCO R-Series Shocks are 100% dyno tested, rebuildable and revalvable.

  • Compressed Length: 12.75"
  • Extended Length: 19.50"

The larger body and the full 5/8" shaft of the Big Body provides increased strength, as well as the flexibility of a standard size coilover spring.

Dirt Modified Swing Arm Twin Tube Shock Chart (Link)

Dirt Modified 4-Link Twin Tube Shock Chart (Link)

Item Details

12.75" Comp, 19.50" Ext
Comp/Rebound: 4/6

Application

Big Body Popular Applications:

  • Modifieds
  • Late Models
  • Limited Late Models
  • Open Wheel
  • Coilover or Conventional Spring
  • Dirt Modifieds
  • Recommended Swing Arm Twin Tube Shocks-Rebuildable
    • Left Front
      • Base Track Condition
    • Right Front
      • Slick, Rough Track Condition
  • Recommended 4-Link Twin Tube Shocks-Rebuildable
    • Right Front
      • Rough Track Condition
Some parts are not legal for use in California or other states with similar laws/regulations
