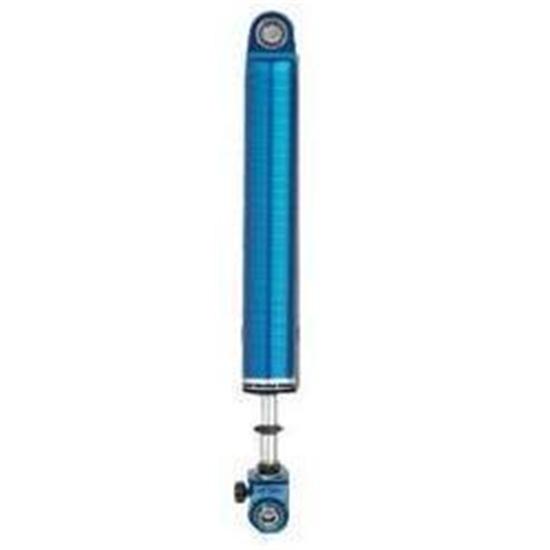

AFCO 1673-25 Alum. Small Adjustable Threaded, 7", Comp 3/Reb 2-5
$374.99
/each
Factory Shipped
$399.99
Save $25.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Small Body |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1673-25 Details
AFCO 1673-25 Details
- Twin-tube design for traction in the slickest of track conditions
- Rebound changes will not affect compression
- Shim stack technology in a lightweight small-body design
- Threaded for coilover applications
- Rebuildable and repairable
- 1.68" O.D.
- Compressed length: 12.59"
- Extended length: 19.69"

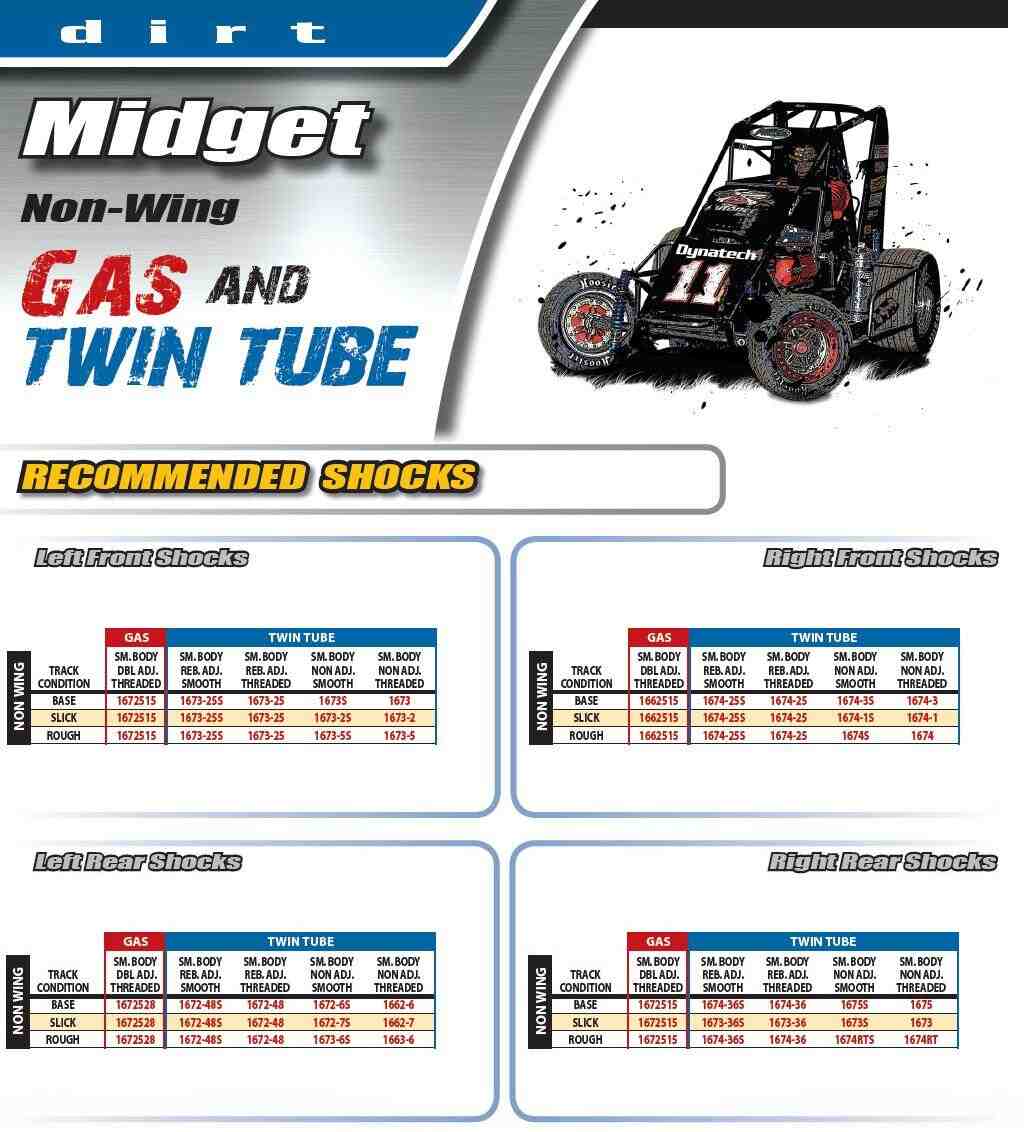

Application
- Midget Sprint Non-Wing - Dirt
- Recommended Twin Tube Shocks - Small Body Rebound Adjustable Threaded
- Left Front
- Base, Slick, Rough Track Condition
- Left Front
- Recommended Twin Tube Shocks - Small Body Rebound Adjustable Threaded
- Mini-Sprint Wing & Non-Wing - Dirt
- Recommended Twin Tube Shocks - Small Body Rebound Adjustable Threaded
- Left or Right Front
- Base, Slick, Rough Track Condition
- Left or Right Front
- Recommended Twin Tube Shocks - Small Body Rebound Adjustable Threaded
Charts
Warranty Information
Click for details
Warranty Information
Click for details
Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.
AFCO 1673-25 Specifications
AFCO 1673-25 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1673-25 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Single Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Small Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 3 |
| Rebound Valving | 2 - 5 |
| Upper Shock Mount | Spherical Rod End |
| Lower Shock Mount | Spherical Rod End |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.5" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.5" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 7.00 |
| Coil-Over Compatible | Yes |
| Rebuildable | Yes |
| Sold in Quantity | Each |
