AFCO 1499-1 Fixed Bearing Sealed Body Shock, 9 In, Comp 9/Reb 1

Features a sealed body twin-tube design that can be used with or without coilovers
It can be mounted upside-down for reduced unsprung weight
Compressed length measures 14.75" and extended length is 23.50"

$113.99

/each

In Stock

$129.99

Save $16.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Twin Tube Shock Type, 1 Rebound Valving

Features a sealed body twin-tube design that can be used with or without coilovers
It can be mounted upside-down for reduced unsprung weight
Compressed length measures 14.75" and extended length is 23.50"
The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap
Both the upper and lower shock mounts have a 1/2" spherical rod end

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2"
Shock Body Type	Smooth

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 1499-1 Details

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.

The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap. When youre ready to win, we have the winning shock!

Features a sealed body twin-tube design that can be used with or without coilovers
It can be mounted upside-down for reduced unsprung weight
Compressed length measures 14.75" and extended length is 23.50"
The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap
Both the upper and lower shock mounts have a 1/2" spherical rod end
9" Stroke with Comp/Rebound: 9/1

Guides & Documents

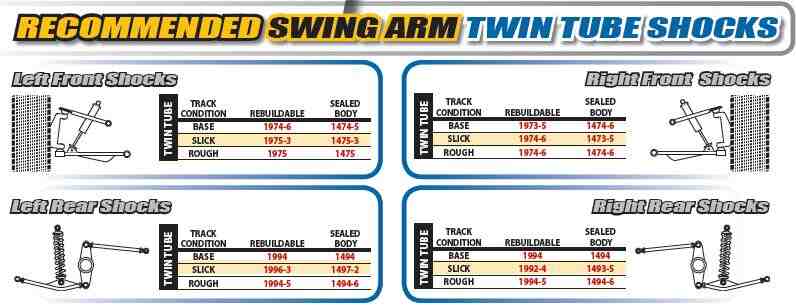

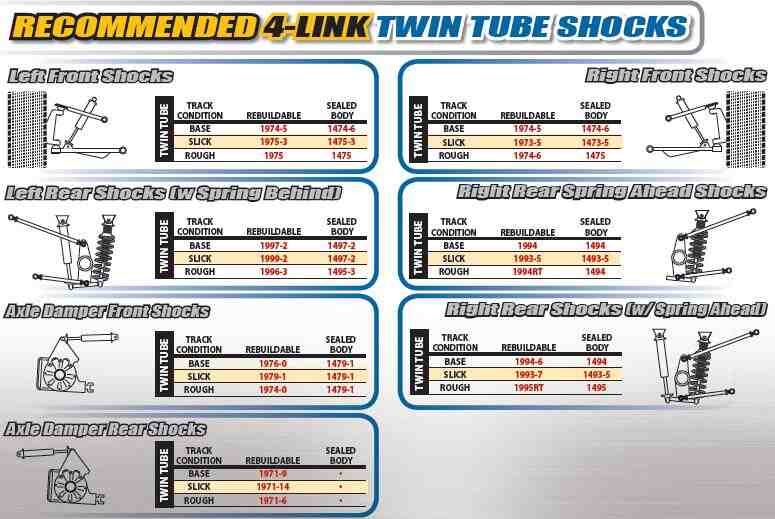

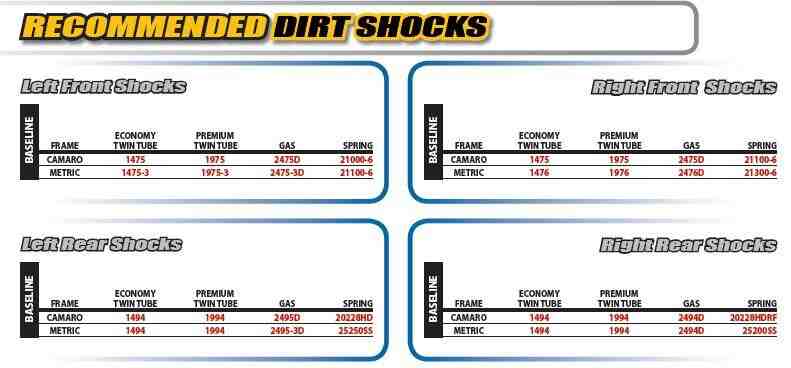

Shocks Technical Information (10614991)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 1499-1 Specifications

KEY SPECS
MFG. Part #	1499-1
Brand	AFCO
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Steel
Body Diameter	2"
Shock Body Type	Smooth
Shock Body Size	Small Body
Shock Stroke Range	9.00" to 9.99"
Position	Front or Rear
Stroke	9"
Compression Valving	9
Rebound Valving	1
Mount Position	Stock Mount
Upper Shock Mount	Spherical Rod End
Lower Shock Mount	Spherical Rod End
Extended Length Range	23.00" to 23.99"
Extended Length	23.5"
Compressed Length Range	14.00" to 14.99"
Finish	Anodized
Compressed Length	14.75"
Gas Charged	Yes

GENERAL
Rebuildable	No
Shock Stroke	9.00
Bolt Hole Circle	0.5"
Sold in Quantity	Each
