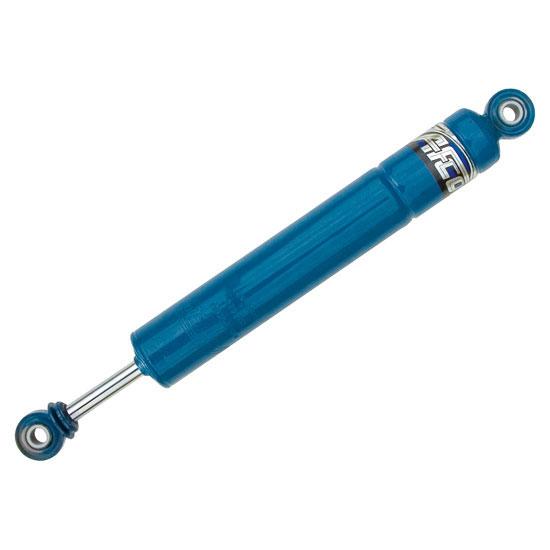

AFCO 1474-6 14 Series Fixed Bearing Sealed Shock-7 Inch, Comp 4/Reb 6
AFCO 1474-6 14 Series Fixed Bearing Sealed Shock-7 Inch, Comp 4/Reb 6
AFCO

|

#10614746

AFCO 1474-6 14 Series Fixed Bearing Sealed Shock-7 Inch, Comp 4/Reb 6

  • The sealed body twin-tube design can be used with or without Coilovers
  • They can be man be mounted upside-down for reduced unsprung weight
  • Has a compressed length of 12.75" and an extended length of 19.5"
See More

$125.99

/each

In Stock

$129.99

Save $4.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Modified, Stock Car, Twin Tube Shock Type, Painted

  • The sealed body twin-tube design can be used with or without Coilovers
  • They can be man be mounted upside-down for reduced unsprung weight
  • Has a compressed length of 12.75" and an extended length of 19.5"
  • Both the upper and lower shock mounts have a 1/2" spherical rod end
  • Features steel shock body with a painted finish for added protection and enhanced looks
See more details

Key Specs

Shock TypeTwin Tube
Shock AdjustabilityNon-Adjustable
Shock Body MaterialSteel
Body Diameter2"
Shock Body TypeSmooth
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

AFCO 14746 Details

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.

The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.

When youre ready to win, we have the winning shock!

  • Sealed bodyTwin-Tube designCan be used with or without coilovers
  • Can be mounted upside-down for reduced unsprung weight
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"

Item Details

Comp. Length: 12.75"
Extended Length: 19.50"
Comp/Rebound: 4/6

Application

  • Dirt Modifieds
  • Recommended Swing Arm Twin Tube Shocks-Sealed Body
    • Right Front
      • Base, Rough Track Condition
  • Recommended 4-Link Twin Tube Shocks-Sealed Body
    • Left or Right Front
      • Base Track Condition

Charts

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

AFCO 14746 Specifications

KEY SPECS
MFG. Part #14746
BrandAFCO
Shock TypeTwin Tube
Shock AdjustabilityNon-Adjustable
Shock Body MaterialSteel
Body Diameter2"
Shock Body TypeSmooth
Shock Body SizeSmall Body
Shock Stroke Range7.00" to 7.99"
Compression Valving4
Rebound Valving6
Upper Shock Mount1/2" Spherical Rod End
Lower Shock Mount1/2" Spherical Rod End
Extended Length Range19.00" to 19.99"
Extended Length19.5"
Compressed Length Range12.00" to 12.99"
FinishPainted
Compressed Length12.75"
GENERAL
RebuildableNo
Schrader ValveNo
Shock Stroke7.00
Coil-Over CompatibleYes
Valve Positions4 compression - 6 rebound
Shock Eyelet Width0.625"
Bolt Hole Circle.500"
Hardware IncludedNo
Sold in QuantityEach
