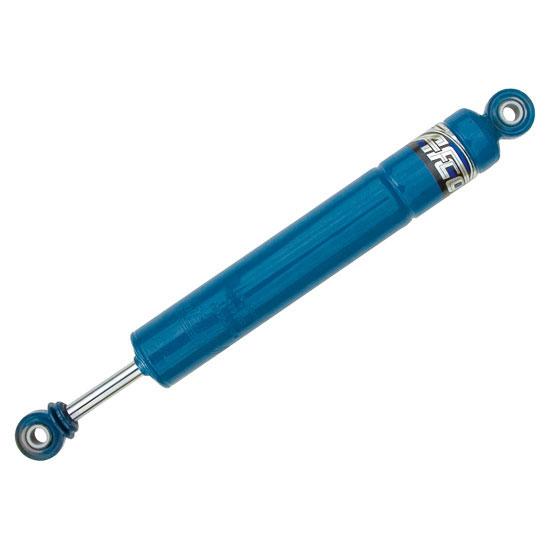

AFCO 1473-5 14 Series Fixed Bearing Sealed Shock-7 Inch, Comp 3/Reb 5
3 Reviews
|
Ask a Question
- They have a sealed body twin-tube design that can be used with or without coilovers
- Shocks can be mounted upside-down for reduced unsprung weight
- Has a compressed length of 12.75" and an extended length measuring 19.5"
See More
$119.99
each
In Stock
Order soon, only 3 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Modified, Stock Car, Twin Tube Shock Type, Painted
- They have a sealed body twin-tube design that can be used with or without coilovers
- Shocks can be mounted upside-down for reduced unsprung weight
- Has a compressed length of 12.75" and an extended length measuring 19.5"
- Includes bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness
- Both the upper and lower shock mounts have a 1/2" spherical rod end
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 14735 Details
AFCO 14735 Details
AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.
AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness.
The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.
When youre ready to win, we have the winning shock!
- Sealed bodyTwin-Tube designCan be used with or without coilovers
- Can be mounted upside-down for reduced unsprung weight
- Compressed Length: 12.75"
- Extended Length: 19.50"
- Stroke: 7"
Item Details
Comp. Length: 12.75"Extended Length: 19.50"
Comp/Rebound: 3/5
Application
- Dirt Modifieds
- Recommended Swing Arm and 4-Link Twin Tube Shocks-Sealed Body
- Right Front
- Slick Track Condition
- Right Front
Charts
AFCO 14735 Specifications
AFCO 14735 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 14735 |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Steel |
| Shock Body Type | Smooth |
| Shock Body Size | Small Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 3 |
| Rebound Valving | 5 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 19.00" to 19.99" |
| Extended Length | 19.5" |
| Compressed Length Range | 12.00" to 12.99" |
| Compressed Length | 12.75" |
| Finish | Painted |
| Coil-Over Compatible | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Body Diameter | 2.00" |
| Valve Positions | 3 compression - 5 rebound |
| Rebuildable | No |
| Sold in Quantity | Each |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
