AFCO 14 Series Fixed Bearing Sealed Shocks, 7 & 9 Inch

AFCO S-Series Fixed Bearing Shocks offer tremendous value by packaging race-proven design, proven value combinations, and durability in an economical, fixed bearing design that can be used with or without coilovers.

AFCO fixed bearing shocks feature quality bearing ends that allow for free movement in applications where other mounts could be bound and reduce shock effectiveness. The available standard valves, as well as split valves, allow for multiple tuning options with a simple shock swap.

• Sealed body
• Twin-Tube design
• Can be used with or without coilovers
• Can be mounted upside-down for reduced unsprung weight
• 9 Inch Shock
  • Comp/Rebound: 7/2
  • Compressed Length: 14.75"
  • Extended Length: 23.50"
  • Stroke: 9"
• 7 Inch Shock
  • Comp/Rebound: 3/5
  • Compressed Length: 12.75"
  • Extended Length: 19.50"
  • Stroke: 7"

When youre ready to win, we have the winning shock!

• Dirt Modifieds
• Recommended Swing Arm and 4-Link Twin Tube Shocks-Sealed Body

  • Right Front

    • Slick Track Condition
• Recommended 4-Link Twin Tube Shocks-Sealed Body
  • Left Rear (w/Spring Behind)
    • Base, Slick Track Condition

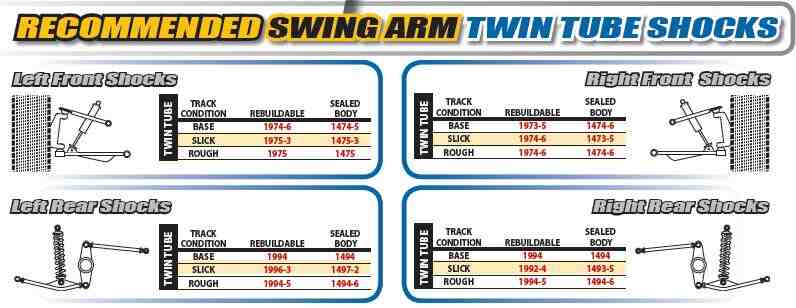

Dirt Modified Swing Arm Twin Tube Shock Chart (JPG)

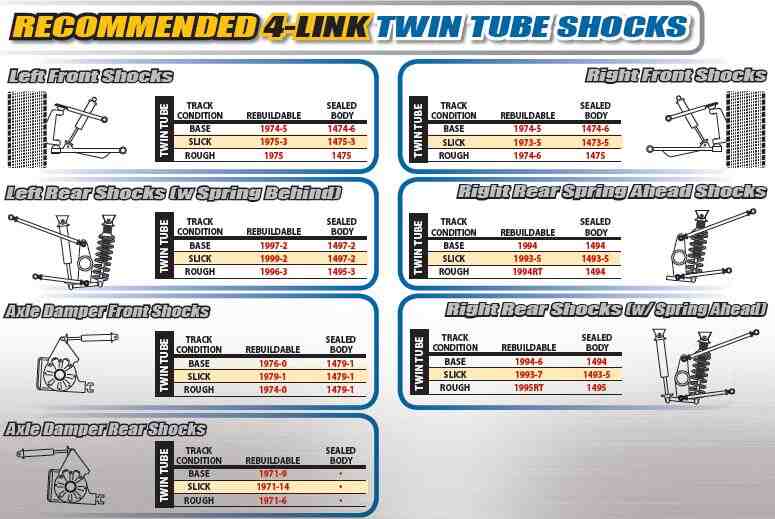

Dirt Modified 4-Link Twin Tube Shock Chart (JPG)
