Product Summary

Dirt Late Model, Pavement Late Model, 6 Rebound Valving

    Key Specs

    Shock TypeTwin Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Body Diameter2.17"
    Shock Body TypeThreaded

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

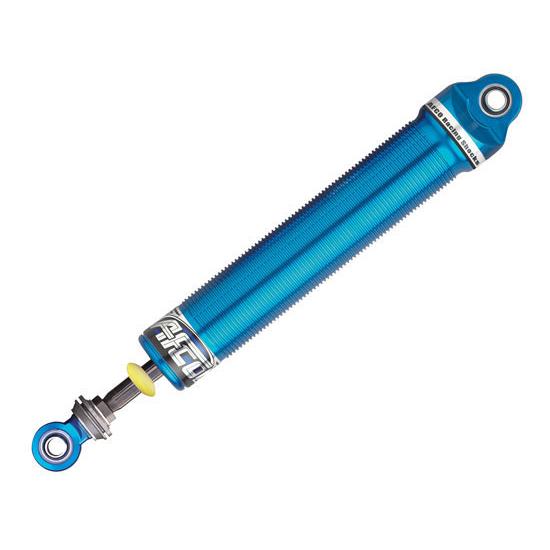

    AFCO 1396T Details

    Precise, consistent and dependable control is what makes the AFCO R-Series shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Their production system ensures that when you buy an AFCO shock, you have bought the best! Today, AFCO R-Series rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.

    • Built to the highest standards in the industry
    • In-house manufacturing means total control over production tolerances and quality
    • Shim stack technology gives excellent consistency and repeatablility
    • Twin tube design for best performance on slick, smooth tracks
    • Threaded aluminum body
    • 100% dyno tested, rebuildable, and revalvable
    • Compressed Length: 15.32"
    • Extended Length: 24.25"

    AFCO 1396T Specifications

    KEY SPECS
    MFG. Part #1396T
    BrandAFCO
    Shock TypeTwin Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Body Diameter2.17"
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range9.00" to 9.99"
    Compression Valving6
    Rebound Valving6
    Extended Length Range24.00" to 24.99"
    Extended Length24.25"
    Compressed Length Range15.00" to 15.99"
    Compressed Length15.32"
    FinishAnodized
    GENERAL
    Shock Stroke9.00
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Schrader ValveNo
    Coil-Over CompatibleYes
    Valve Positions6 compression - 6 rebound
    RebuildableYes
    Bushing MaterialSteel
    Sold in QuantityEach
    NotesMADE TO ORDER
    Thread Length9.59"
    Shock Eyelet Width0.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
