AFCO 1396-2T Afco M2/T2 Large Threaded Coilover Kit, 9",6/2 Valve

Name: AFCO 1396-2T Afco M2/T2 Large Threaded Coilover Kit, 9",6/2 Valve
Brand: AFCO
SKU: 10613962T
Price: 244.99 USD
Availability: InStock

Write a Review

Ask a Question

$244.99

/each

Factory Shipped

$274.99

Save $30.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Oval Track Cars, Front Position, Twin Tube Shock Type

See more details

Key Specs

Position	Front
Shock Adjustability	Non-Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum
Upper Shock Mount	1/2" Bushed Eyelet

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 13962T Details

Shim stack technology gives excellent consistnecy and repeatability
Twin tube design for best performance on slick, smooth tracks
Non-adjustable design for Late Model/ASA NASCAR Modified applications
Threaded aluminum body
9" stroke
Comp/Rebound: 6/2

Application

Dirt Late Model/Crate Late Model

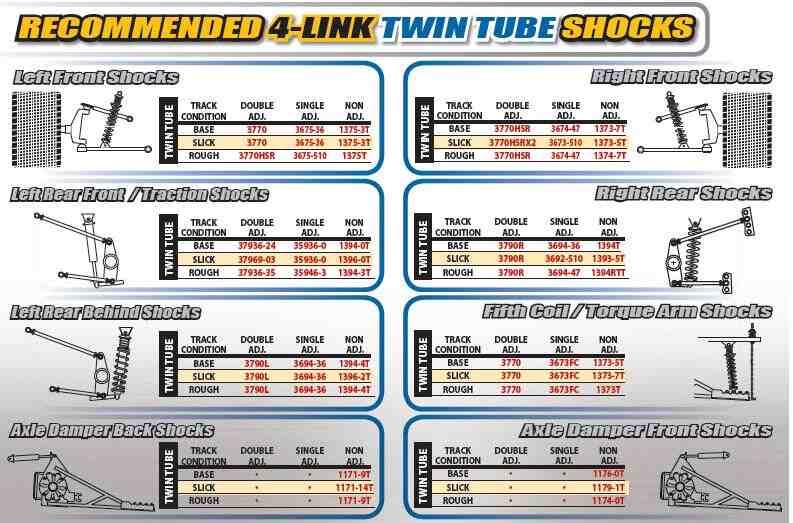

Recommended 4-Link Twin Tube Shocks
- Left Rear Behind Shocks
  - Slick Track Condition

Charts

Late Model 4-Link Twin Tube Shock Chart (JPG)

Guides & Documents

Coilovers Technical Information (10613962T)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

AFCO 13962T Specifications

KEY SPECS
MFG. Part #	13962T
Brand	AFCO
Position	Front
Shock Adjustability	Non-Adjustable
Shock Type	Twin Tube
Shock Body Material	Aluminum
Upper Shock Mount	1/2" Bushed Eyelet
Lower Shock Mount	1/2" Bushed Eyelet
Height Adjustable	Yes
Finish	Anodized

GENERAL
Shock Body Size	Large Body
Shock Body Type	Threaded
Compressed Length Range	15.00" to 15.99"
Compressed Length	15.32"
Extended Length Range	24.00" to 24.99"
Extended Length	24.25"
Coilover Kit Included	Yes
Coilover Springs Included	No
Thread Length	9.59"
Bushing Material	Steel
Body Diameter	2.17"
Sold in Quantity	Each
Adjustable	No
Hardware Included	No
