#10613935T

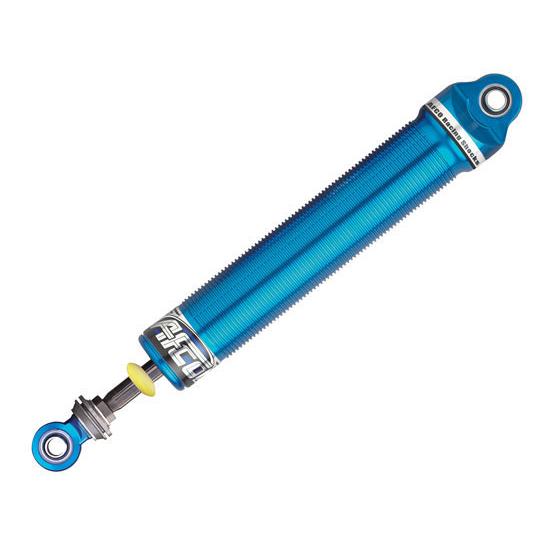

AFCO 1393-5T 13T Large Threaded Twin-Tube Shock, 9 Inch, Comp 3/Reb 5
$244.99
/each
Factory Shipped
$274.99
Save $30.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
-10%
-10%
|
#10613935T
$244.99
/each
Factory Shipped
$274.99
Save $30.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 2.17" |
| Shock Body Type | Threaded |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyPrecise, consistent and dependable control is what makes the AFCO R-Series shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Their production system ensures that when you buy an AFCO shock, you have bought the best! Today, AFCO R-Series rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.
Application

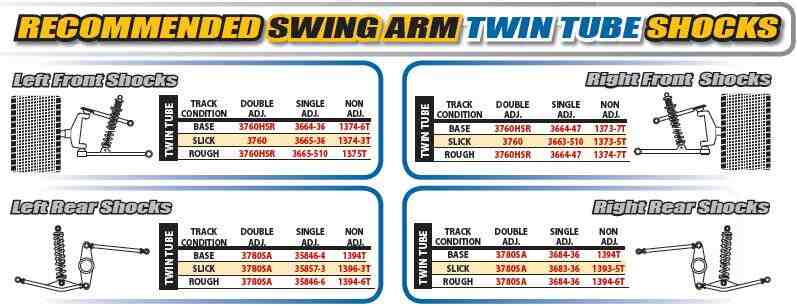

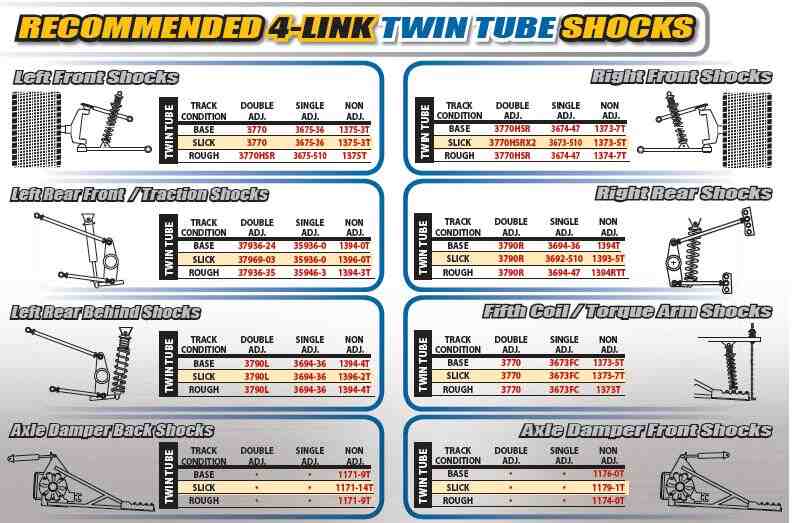

Charts
WARNING:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 1393-5T |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 2.17" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 9.00" to 9.99" |
| Position | Front or Rear |
| Compression Valving | 3 |
| Rebound Valving | 5 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 24.00" to 24.99" |
| Extended Length | 24.25" |
| Compressed Length Range | 15.00" to 15.99" |
| Finish | Anodized |
| Compressed Length | 15.32" |
| GENERAL | |
| Rebuildable | Yes |
| Schrader Valve | No |
| Shock Stroke | 9.00 |
| Coil-Over Compatible | Yes |
| Valve Positions | 3 compression - 5 rebound |
| Bushing Material | Steel |
| Thread Length | 9.59" |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | 0.5" |
| Hardware Included | No |
| Notes | MADE TO ORDER |
| Sold in Quantity | Each |
4.5
2 Reviews
Customers are highly pleased with the product's performance, opting to continuously use it over a 15-year span. Users have found it so effective that they'd happily repurchase. The product's primary features are notable for their reliability and functionality. Compared to Schaefer valves, it provides an undeniable advantage in gas pressure adjustment, mainly for northeast dirt modified use. A constant quality, practical usability, and safety of this product have been confidently voiced by customers, setting it apart from competitors in its field.
4.5
2 reviews
5
1
4
1
3
0
2
0
1
0
Filter by Ratings
Yes I would buy this product again
4.0
6 years ago
Cj
Milton de
Verified
Use this product on a northeast dirt modified. We can't have a Schaefer valve to adjust gas pressure so I've been using these shocks for 15 years.
Would Recommend
Good product
5.0
6 years ago
Ws67
Boise
Verified
.
Would Recommend
Showing 2 of 2 reviews
