#1061390T

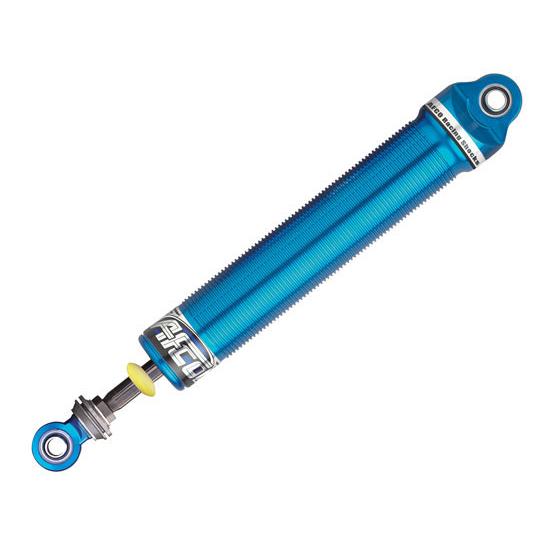

AFCO 1390T Series Large Body Threaded Twin-Tube Shock, 9 Inch, 0 Valve
$239.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 5th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Pavement Late Model, 0 Rebound Valving
See more details
Key Specs
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1390T Details
AFCO 1390T Details
Precise, consistent and dependable control is what makes the AFCO R-Series shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Their production system ensures that when you buy an AFCO shock, you have bought the best! Today, AFCO R-Series rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.
- Built to the highest standards in the industry
- In-house manufacturing means total control over production tolerances and quality
- Shim stack technology gives excellent consistency and repeatablility
- Twin tube design for best performance on slick, smooth tracks
- Threaded aluminum body
- 100% dyno tested, rebuildable, and revalvable
- Compressed Length: 15.32"
- Extended Length: 24.25"
Item Details
0 ValveAFCO 1390T Specifications
AFCO 1390T Specifications
KEY SPECS | |
---|---|
MFG. Part # | 1390T |
Brand | AFCO |
Shock Type | Twin Tube |
Shock Adjustability | Non-Adjustable |
Shock Body Material | Aluminum |
Shock Body Type | Threaded |
Shock Body Size | Large Body |
Shock Stroke Range | 9.00" to 9.99" |
Compression Valving | 0 |
Rebound Valving | 0 |
Upper Shock Mount | 1/2" Spherical Rod End |
Lower Shock Mount | 1/2" Spherical Rod End |
Extended Length Range | 24.00" to 24.99" |
Extended Length | 24.25" |
Compressed Length Range | 15.00" to 15.99" |
Compressed Length | 15.32" |
Finish | Anodized |
Coil-Over Compatible | Yes |
GENERAL | |
Speedway Motors Catalog Part # | 106-1390T |
Shock Stroke | 9.00 |
Schrader Valve | No |
Body Diameter | 2.17" |
Valve Positions | 0 compression - 0 rebound |
Rebuildable | Yes |
Bushing Material | Steel |
Sold in Quantity | Each |
Notes | MADE TO ORDER |
Thread Length | 9.59" |
Shock Eyelet Width | 0.625" |
Bolt Hole Circle | .500" |
Hardware Included | No |
