#1061375RTT

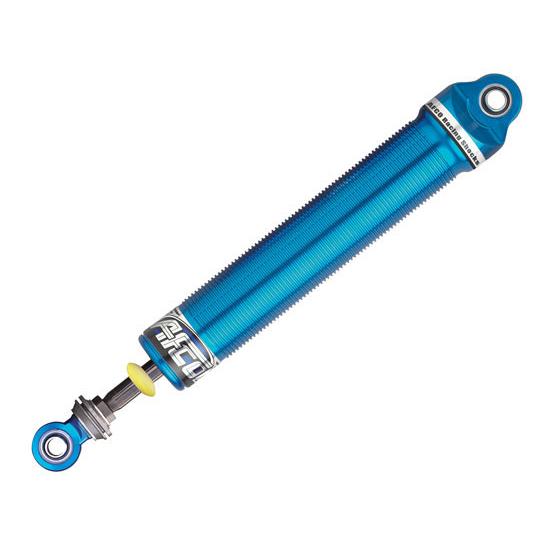

AFCO 1375RTT 13T Big Threaded Twin-Tube 7 Inch Shock Comp 5RT/Reb 5RT
$239.99
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before September 25th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Dirt Late Model, Pavement Late Model, Anodized
See more details
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1375RTT Details
AFCO 1375RTT Details
Precise, consistent and dependable control is what makes the AFCO R-Series Shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Today, AFCO R-Series Rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.
All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable. AFCO Shocks are built to the highest standards in the industry. In-house manufacturing means that they have total control over production tolerances and quality. Their production system ensures that when you buy an AFCO shock, you have bought the best!
- Compressed Length: 13.32"
- Extended Length: 20.25"
- Threaded Body
AFCO Rough Track Valving
Part # 106-1375RTT features specially designed valving to control the chassis during "rough track" conditions without compromising the handling during "normal" racing conditions.
Item Details
Rough Track 5RTApplication
Big Body Popular Applications:
- Late Models
- Open Wheel
- Coilover Applications
AFCO 1375RTT Specifications
AFCO 1375RTT Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1375RTT |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 7.00" to 7.99" |
| Compression Valving | 5RT |
| Rebound Valving | 5RT |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 20.00" to 20.99" |
| Extended Length | 20.25" |
| Compressed Length Range | 13.00" to 13.99" |
| Compressed Length | 13.32" |
| Finish | Anodized |
| Coil-Over Compatible | Yes |
| GENERAL | |
| Shock Stroke | 7.00 |
| Schrader Valve | No |
| Body Diameter | 2.17" |
| Valve Positions | 5RT compression - 5RT rebound |
| Rebuildable | Yes |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Thread Length | 7.59" |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
