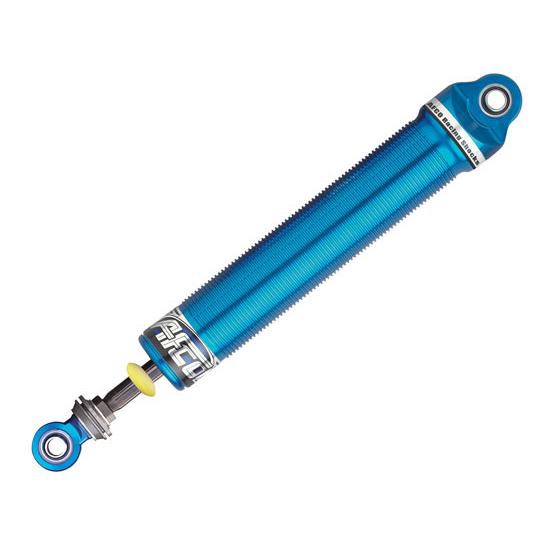

AFCO 1375-3T 13T Alum Big Threaded Twin-Tube 7 Inch Shock-Comp 5/Reb 3

-5%

#10613753T

AFCO 1375-3T 13T Alum Big Threaded Twin-Tube 7 Inch Shock-Comp 5/Reb 3

Name: AFCO 1375-3T 13T Alum Big Threaded Twin-Tube 7 Inch Shock-Comp 5/Reb 3
Brand: AFCO
SKU: 10613753T
Price: 258.99 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

Ask a Question

All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable
Has a large, threaded aluminum body with an anodized finish for added protection
Shocks comes pre-set to provide you with the "just right" set-up you need to win

$258.99

/each

Factory Shipped

$274.99

Save $16.00

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Pavement Late Model, 3 Rebound Valving

All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable
Has a large, threaded aluminum body with an anodized finish for added protection
Shocks comes pre-set to provide you with the "just right" set-up you need to win
Compressed length measures 13.32" and has an extended length of 20.25"
Bothe the upper and lower shock mounts have a 1/2" spherical rod end

See more details

Key Specs

Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2.17"
Shock Body Type	Threaded

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

AFCO 1375-3T Details

Precise, consistent and dependable control is what makes the AFCO R-Series Shocks winners. These shocks have maintained their ability to provide the highest levels of performance from a fixed valve twin-tube shock by evolutionary improvements in production methods and component design. Today, AFCO R-Series Rebuildable shocks are better than ever and are set to provide you with the "just right" set-up you need to win.

All AFCO R-Series Shocks are 100% dyno tested, rebuildable, and revalvable. AFCO Shocks are built to the highest standards in the industry. In-house manufacturing means that they have total control over production tolerances and quality. Their production system ensures that when you buy an AFCO shock, you have bought the best!

Compressed Length: 13.32"
Extended Length: 20.25"
Threaded Body

Application

Big Body Popular Applications:

Late Models
Open Wheel
Coilover Applications
Dirt Late Model/Crate Late Model

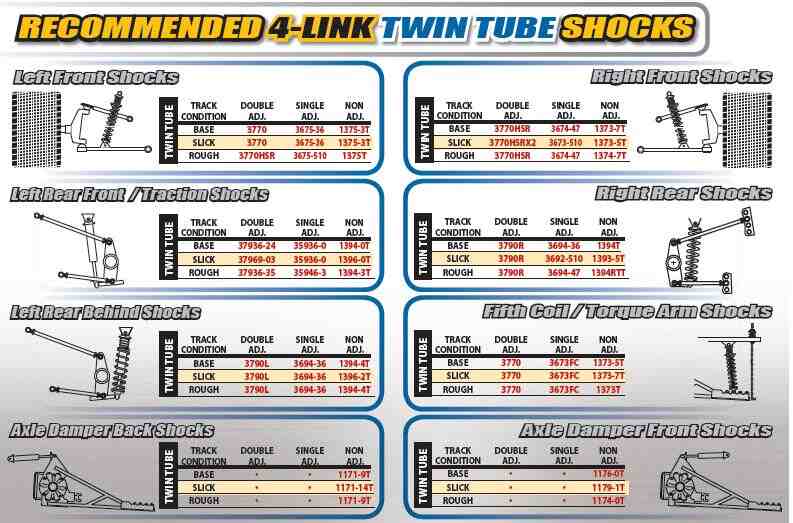

Recommended 4-Link Twin Tube Shocks
- Left Front
  - Base, Slick Track Condition

Charts

Late Model 4-Link Twin Tube Shock Chart (JPG)

Guides & Documents

Shocks Technical Information (10613753T)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

AFCO 1375-3T Specifications

KEY SPECS
MFG. Part #	1375-3T
Brand	AFCO
Shock Type	Twin Tube
Shock Adjustability	Non-Adjustable
Shock Body Material	Aluminum
Body Diameter	2.17"
Shock Body Type	Threaded
Shock Body Size	Large Body
Shock Stroke Range	7.00" to 7.99"
Position	Front or Rear
Compression Valving	5
Rebound Valving	3
Upper Shock Mount	1/2" Spherical Rod End
Lower Shock Mount	1/2" Spherical Rod End
Extended Length Range	20.00" to 20.99"
Extended Length	20.25"
Compressed Length Range	13.00" to 13.99"
Finish	Anodized
Compressed Length	13.32"

GENERAL
Rebuildable	Yes
Schrader Valve	No
Shock Stroke	7.00
Coil-Over Compatible	Yes
Valve Positions	5 compression - 3 rebound
Bushing Material	Steel
Thread Length	7.59"
Shock Eyelet Width	0.625"
Bolt Hole Circle	0.5"
Hardware Included	No
Sold in Quantity	Each
