AFCO 1374-10T 13 Series Alum Body Threaded 7" Shock,Comp 4/Reb 10

-7%

AFCO 1374-10T 13 Series Alum Body Threaded 7" Shock,Comp 4/Reb 10
AFCO

|

#106137410T

AFCO 1374-10T 13 Series Alum Body Threaded 7" Shock,Comp 4/Reb 10

$253.99

/each

Factory Shipped

$274.99

Save $21.00


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Oval Track Cars, Twin Tube Shock Type, Anodized

    See more details

    Key Specs

    Shock TypeTwin Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Body Diameter2.17"
    Shock Body TypeThreaded
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 1374-10T Details

    AFCO 13 Series Aluminum Body Non-Adjustable Threaded Shocks - 7 Inch Stroke

    • Compressed Length: 13.90"
    • Extended Length: 20.90"

    Item Details

    Compressed Length: 13.90"Extended Length: 20.90"Comp./Rebound: 4/10

    Application

    • Late Model / ASA NASCAR Modified - Pavement
      • Recommended Conventional Twin Tube Shocks - Non-Adjustable
        • Left/Right Front

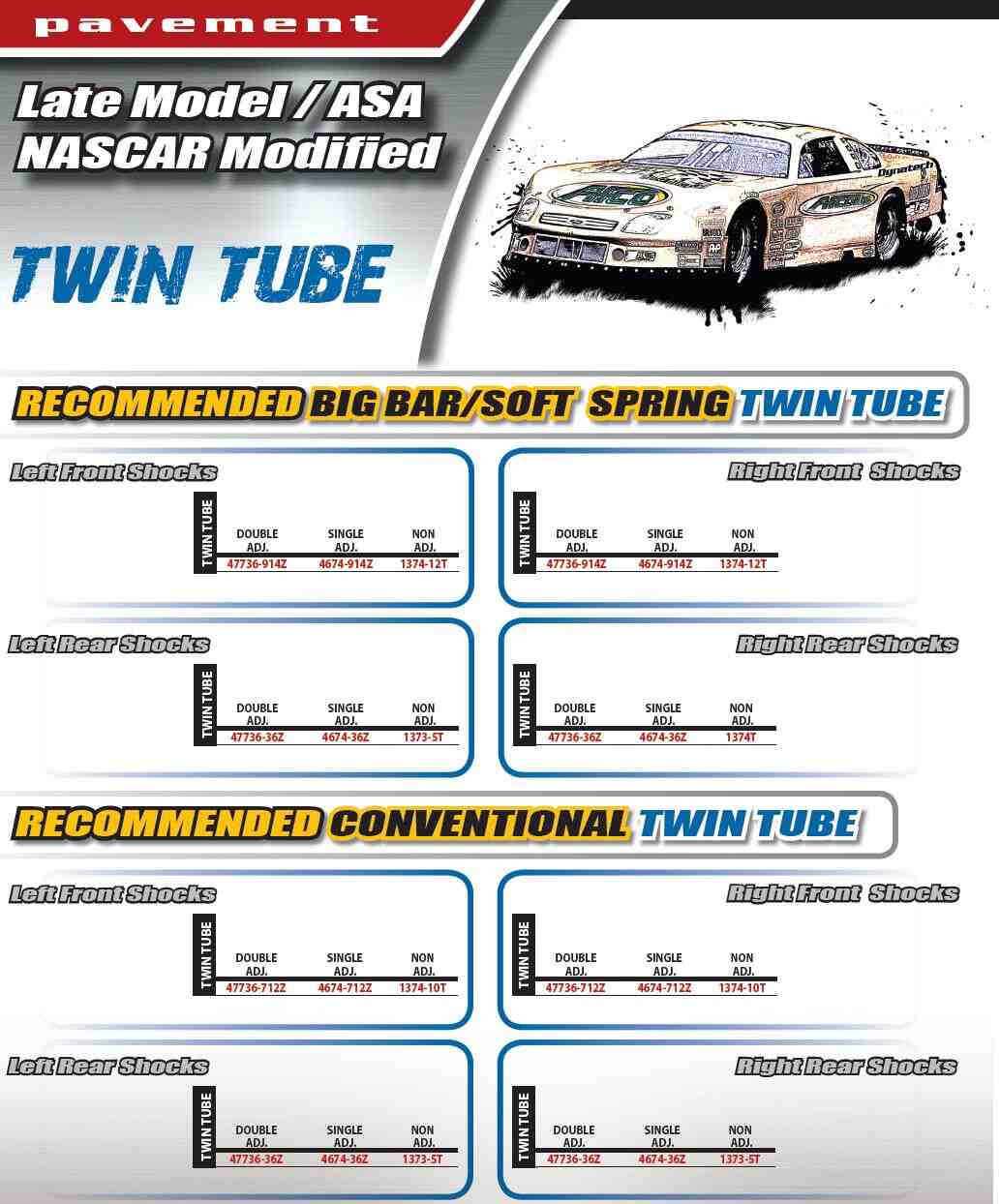

    Charts

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 1374-10T Specifications

    KEY SPECS
    MFG. Part #1374-10T
    BrandAFCO
    Shock TypeTwin Tube
    Shock AdjustabilityNon-Adjustable
    Shock Body MaterialAluminum
    Body Diameter2.17"
    Shock Body TypeThreaded
    Shock Body SizeLarge Body
    Shock Stroke Range7.00" to 7.99"
    Compression Valving4
    Rebound Valving10
    Upper Shock Mount1/2" Spherical Rod End
    Lower Shock Mount1/2" Spherical Rod End
    Extended Length Range20.00" to 20.99"
    Extended Length20.25"
    Compressed Length Range13.00" to 13.99"
    FinishAnodized
    Compressed Length13.32"
    GENERAL
    RebuildableYes
    Schrader ValveNo
    Shock Stroke7.00
    Coil-Over CompatibleYes
    Valve Positions4 compression - 10 rebound
    Bushing MaterialSteel
    Thread Length7.59"
    Shock Eyelet Width0.625"
    Bolt Hole Circle.500"
    Hardware IncludedNo
    Sold in QuantityEach
