#1061355T

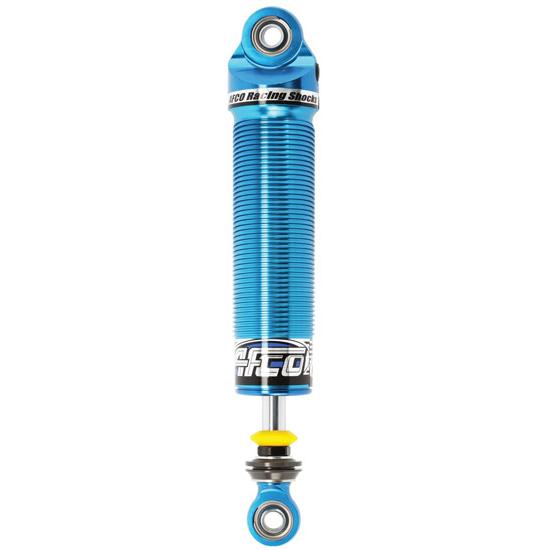

AFCO 1355T 13T Series Aluminum Big Threaded Shock-5 Inch, Comp 5/Reb 5
$247.99
/each
Factory Shipped
$274.99
Save $27.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 2.17" |
| Shock Body Type | Threaded |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 1355T Details
AFCO 1355T Details
AFCO Aluminum Big Body Threaded Shocks. 5 Valve. 5 Inch Stroke
- Compressed Length: 11.32"
- Extended Length: 16.25"
Warranty Information
Click for details
Warranty Information
Click for details
Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.
AFCO 1355T Specifications
AFCO 1355T Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1355T |
| Brand | AFCO |
| Shock Type | Twin Tube |
| Shock Adjustability | Non-Adjustable |
| Shock Body Material | Aluminum |
| Body Diameter | 2.17" |
| Shock Body Type | Threaded |
| Shock Body Size | Large Body |
| Shock Stroke Range | 5.00" to 5.99" |
| Compression Valving | 5 |
| Rebound Valving | 5 |
| Upper Shock Mount | 1/2" Spherical Rod End |
| Lower Shock Mount | 1/2" Spherical Rod End |
| Extended Length Range | 16.00" to 16.99" |
| Extended Length | 16.32" |
| Compressed Length Range | 11.00" to 11.99" |
| Compressed Length | 11.32" |
| Finish | Anodized |
| GENERAL | |
| Shock Stroke | 5.00 |
| Schrader Valve | No |
| Coil-Over Compatible | Yes |
| Valve Positions | 5 compression - 5 rebound |
| Rebuildable | Yes |
| Bushing Material | Steel |
| Sold in Quantity | Each |
| Thread Length | 5.59" |
| Shock Eyelet Width | 0.625" |
| Bolt Hole Circle | .500" |
| Hardware Included | No |
