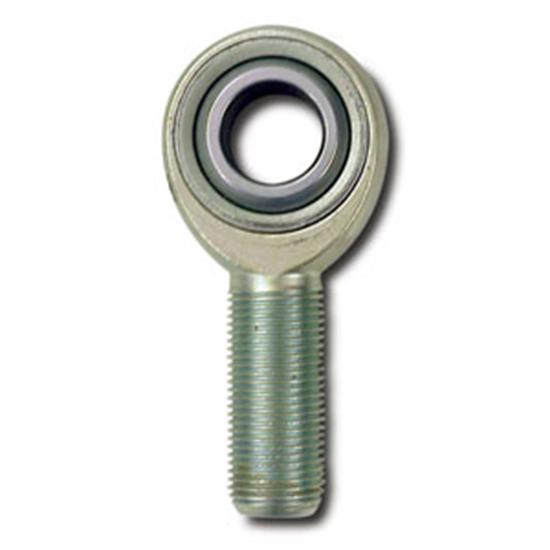

AFCO 10460 Standard Steel Heim Rod End, 3/8-24 RH Male
AFCO 10460 Standard Steel Heim Rod End, 3/8-24 RH Male
AFCO

|

#10610460

AFCO 10460 Standard Steel Heim Rod End, 3/8-24 RH Male

Thread:

Right Hand

$16.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Steel, Natural

    See more details

    Key Specs

    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/8"-24
    Material TypeSteel
    Hole Diameter0.375"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    AFCO 10460 Details

    • Excellent for use as a medium-duty suspension rod end
    • Ball - Case hardened steel hard chrome plated
    • Race - N/A
    • Body - Low carbon steel chromate treated

    Warranty Information

    Click for details

    Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

    AFCO 10460 Specifications

    KEY SPECS
    MFG. Part #10460
    BrandAFCO
    Thread TypeRH Male
    Rod End AttachmentMale Threads/Eyelet
    Thread Pitch3/8"-24
    Material TypeSteel
    Hole Diameter0.375"
    Rod End StyleMetal-to-metal
    Rod End Construction2-piece
    Grease FittingNo
    FinishChromate Treated
    ColorNatural
    Bushing MaterialSteel
    Jam Nut IncludedNo
    GENERAL
    Load Capacity11169 lbs.
    Sold in QuantityEach

    Questions & Answers

    1 Question • 1 Answer

    What is the diameter of the hole, 3/8?

    by Mike

    • 10 years ago

    1 answer

    View Answer
