#10610431

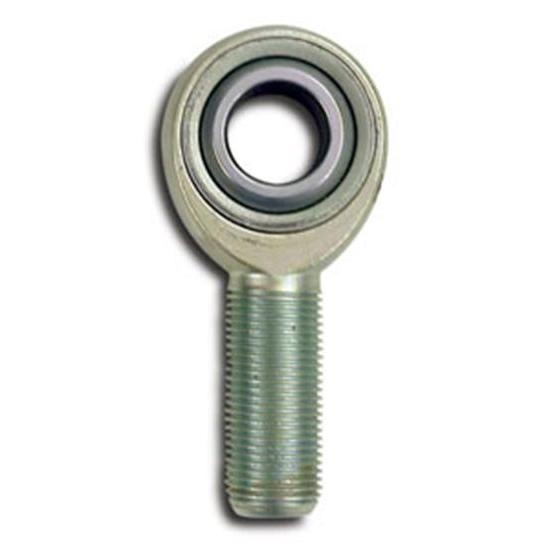

AFCO 10431 Standard Steel Heim Rod End, 5/8-18 LH Male
Right Hand
$14.99
/each
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Steel |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyAFCO 10431 Details
AFCO 10431 Details
- Excellent for use as a medium-duty suspension rod end
- Ball - Case hardened steel hard chrome plated
- Race - N/A
- Body - Low carbon steel chromate treated
- Max Static Load - 9,813 lbs.
Item Details
Bore: 5/8"Shank: 5/8"
Warranty Information
Click for details
Warranty Information
Click for details
Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.
AFCO 10431 Specifications
AFCO 10431 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 10431 |
| Brand | AFCO |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Steel |
| Hole Diameter | 0.625" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Natural |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.625" |
| Load Capacity | 11169 lbs. |
| Sold in Quantity | Each |
Ratings & Reviews
Ratings & Reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
how thick is the head of the rod end?
by matt
• 9 years ago
1 answer
View Answer
1 of 1 questions shown
