Product Summary

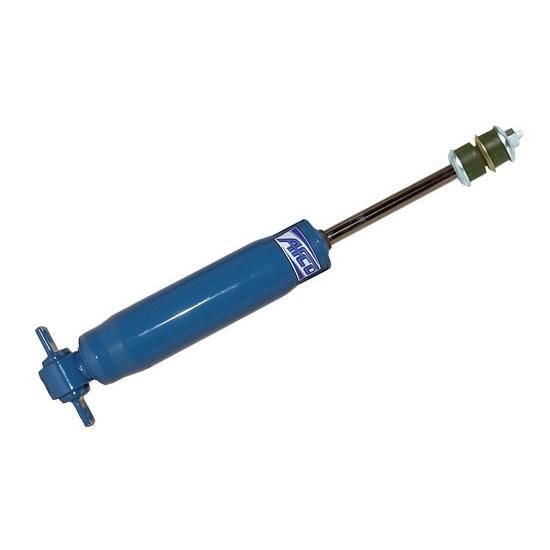

Hobby Stock, Stock Car, Mono Tube Shock Type, Painted

  • Features a "split valve - easy up" shock used on the front to promote weight transfer under acceleration
  • Shocks are built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you
  • Compressed length measures 9.375" and the extended length measures 13.375"
  • They have a large smooth body with a painted finish
  • Upper shock mount has a single stud and lower a T-bar

Key Specs

MFG. Part #1021
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Whatever your street stock choice, AFCO has the stock mount shock for you.  These K-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a "stock" configuration body to meet most track rules.  The split-valve shocks offer additional tuning capabilities over the standard valving.

Available Split Valves - Part # 1061022 is a "split valve - easy up" shock used on the front to promote weight transfer under acceleration.  This will enhance forward traction.

AFCO K-Series shocks are built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you.

  • Compressed Length: 9.375"
  • Extended Length: 13.375"

Fits:

  • 1955-86 GM Full Midsize
  • 1970-81 Camaro/Firebird
  • 1965-86 Ford Fullsize, Montego and Cougar

Item Details

Comp. Length: 9.375"
Extended Length: 13.375"
Comp/Rebound: 6/6

Specifications

KEY SPECS
MFG. Part #1021
BrandAFCO
Shock TypeMono Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body
GENERAL
PositionFront
Compression Valving6
Rebound Valving6
Upper Shock MountSingle Stud
Lower Shock MountT-Bar
Extended Length Range13.00" to 13.99"
Extended Length13.375"
Compressed Length Range9.00" to 9.99"
Compressed Length9.375"
FinishPainted
Coil-Over CompatibleNo
Sold in QuantityEach
